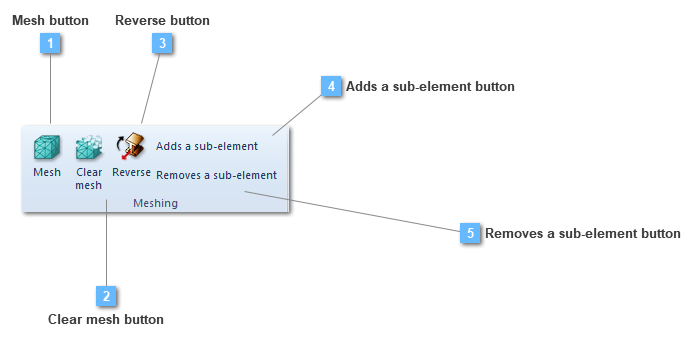

Meshing

Mesh the structural elements



This mesh type option only execute the mesh in the selected structural element or elements.



Clear the mesh from the selected structural elements



This clear mesh option only clear the mesh in the selected structural element or elements.



Reverse the local axis orientation





Creates a sub-element in this structural element in order to modify properties of a set of mesh elements

Removes a sub-element of this structural element. Deletes a sub-element created previously.
