Stress and Strain Section Plot Results





This tool allows displaying stresses and elastic strains in an element’s section.

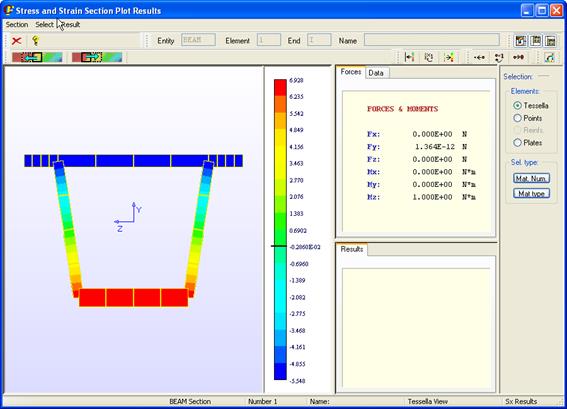

Data are distributed in the window as shown in the figure:











Each of the allowable options in this window is described hereafter.



Bar Menu



Section Menu





Solid Section – Selects a solid section to represent its stresses or elastic strains.

Element Number – Selects a beam or shell section  to represent its stresses or elastic strains.

 Quit – Closes the window.



Select Menu



The section’s elements be represented are chosen with this menu (tessellum, points, reinforcements or plates).





Tessella, Points, Reinforcements, Plates – Type of representation.

By Material type – Selects for the representation, elements with specified material:

-          Generic – All .

-          Structural Steel

-          Concrete

-          Reinforcing Steel

By Material number – Represents those elements whose material number is the same as the one entered by the user.

Select all

Select none



Result Menu



Type of representation: stresses or elastic strains.



Stress – Sx : Represents stress in the X direction of the section.

Stress – Sy : Represents stress in the Y direction of the section.

Stress – Sz : Represents stress in the Z direction of the section.

Stress – Sxy : Represents XY tangential stress of the section.

Stress – Sxz : Represents XZ tangential stress of the section.

Stress – Syz : Represents YZ tangential stress of the section.

Strain – Epx : Represents elastic strain in the X direction of the section.

Strain – Epy : Represents elastic strain in the Y direction of the section.

Strain – Epz : Represents elastic strain in the Z direction of the section.

Strain – Epxy : Represents XY tangential elastic strain of the section.

Strain – Epxz : Represents XZ tangential elastic strain of the section.

Strain – Epyz : Represents YZ tangential elastic strain of the section.



Buttons Bars



   Closes the window

   Shows help

   Type of element chosen for the representation.

  Number of element

   Element’s end

   Name of element

   Activate/deactivate section’s view

   Activate/deactivate section’s data

   Activate/deactivate element’s data view

   Selects the previous/next element

   Reduce the thickness of linear elements in the representation

   Represents linear elements in original scale

   Increases the thickness of linear elements in the representation

   Reduces the size of point tessellum

   Represents point tessellum in original scale

   Increases the size of point tessellum

   Changes the position of legend









Bottom Bar Information
