CFVR0802 - Combination module test with LINK 1 elements

Example to check the combinations utility with LINK 1 elements

This example checks the functionality of the combinations module with LINK 1 elements.

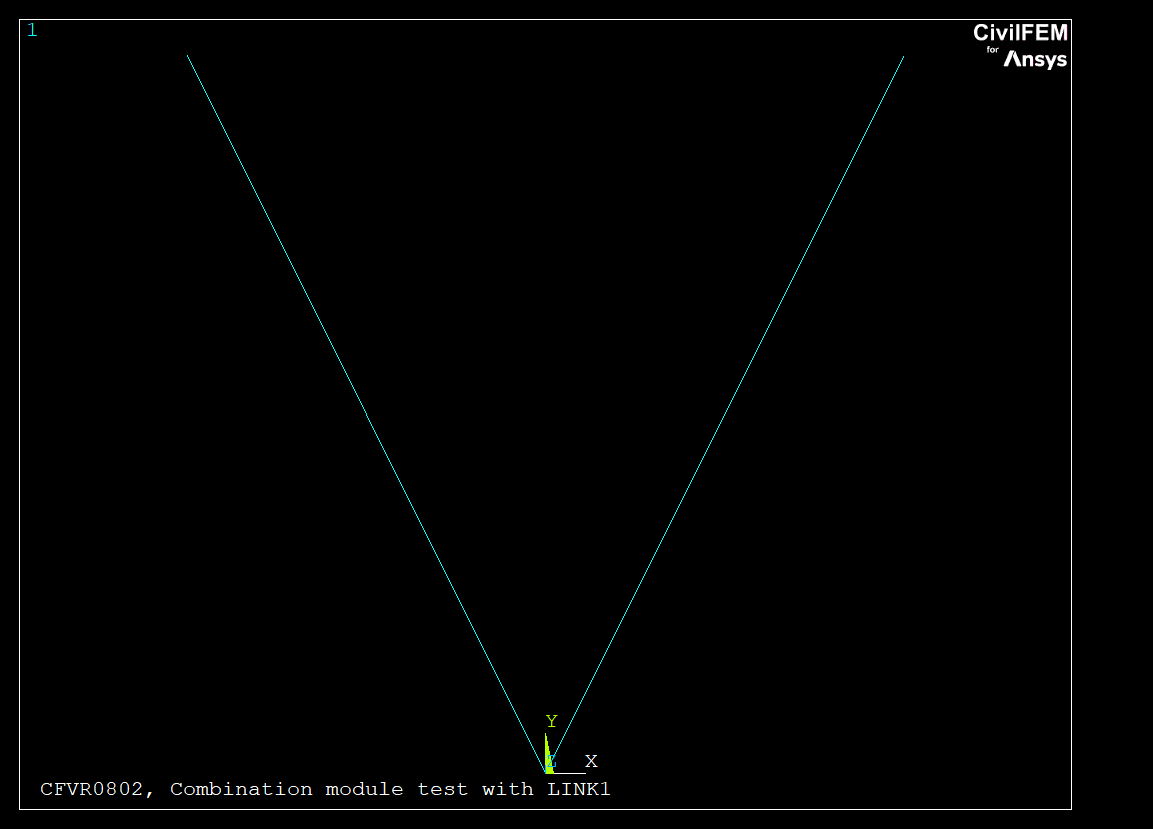

The model is a simple two beam 60º V shaped model. Each beam has different real constants and material properties, which do not represent a physical problem.
The load cases are:

Load Step 2, Sub Step 2: Horizontal load of 15 N (left direction) on the center node (10).
Load Step 5, Sub Step 5: Vertical load of 10 N (downwards) on the center node (10).
Load Step 10, Sub Step 10: Horizontal load of 25 N (right direction) on the center node (10).

No Civil materials or beam properties have been used in this example, only ANSYS results will be checked.

The targets for the combinations are:

Target 2: FX in BEAMS (ABS value)
Target 5: S DIR in BEAMS (Maximum value)
Target 10: EPEL DIR in BEAMS (Minimum value)

The combination rule defined is:

Combination rule 18: SELEC CFV - [(2.0 or 3.0)*H1, (1.0 or 2.0)*H2]

Element types used in the model: LINK1

Needed CivilFEM Modules:
Geotechnical Module
Bridges and Civil Non Linearities Module
Advanced Prestressed Concrete Module

The example can be launched on an educational license.

KEYWORDS

Beam

Combinations

Model Statistics
Number of elements	2
Number of nodes	3
Number of civil materials	0
Number of cross sections	0
Number of shell vertices	0

Log file: CFVR0802.DAT

  FINISH
  ~CFCLEAR,,1
 AnsLic='ansys'

  NomFile='CFVR0802'
  /TITLE, %NomFile%, Combination module test with LINK1
! ---------------------------------------------------------------------------------
! Model definition and solve
! ---------------------------------------------------------------------------------
!  Load scheme:
!                          0.5 m     0.5 m
!                       |---------|---------|
!               -   N15 o                   o N20
!               |        \                 /
!               |         \   R100        / R200
!               |          \  M100       /  M200
!               |           \ E100      /   E200
!             1.0 m          \         /
!               |             \       /
!               |              \     /
!               |               \   /
!               |   (LS2 SB2)    \ /
!               -     H=15  <---- 0----> H=25 (LS10 SB10)
!                             N10 |
!                                 |
!                                 v V=10 (LS5 SB5)
! ---------------------------------------------------------------------------------
/PREP7
! Materials
  MP,EX,100,1E6
  MP,EX,200,2E6
! Sections
  A=2
  R,100,A
  R,200,A/4
! Element type
  ET,5,Link1
! Nodes
  N, 10, 0.0, 0
  N, 15,-0.5, 1
  N, 20, 0.5, 1
! Elements
  MAT,100 $ REAL,100 $ TYPE, 5 $ EN,100, 15, 10
  MAT,200 $ REAL,200 $ TYPE, 5 $ EN,200, 10, 20
! Boundary conditions
  D,15,ALL
  D,20,ALL
! Plot
  EPLOT
! Initial hypothesis solve
  /SOLU
  SOLCONTROL,OFF
  AUTOTS,OFF
  ! Hypothesis 0: LS1 Ignored
    TIME, 2
    OUTRES,ALL,NONE
    SOLVE
  ! Hypothesis 1: LS2 SB2
    TIME,5
    NSUBST,2
    OUTRES,ALL,ALL
    F,10,FX,-15
    EPLOT
    /IMAGE,SAVE,%NomFile%,BMP
    SOLVE
    FDELE,ALL,ALL
  ! Hypothesis 0: LS3 and LS4 Ignored
    TIME, 6
    OUTRES,ALL,NONE
    SOLVE
    TIME, 7
    OUTRES,ALL,NONE
    SOLVE
  ! Hypothesis 2: LS5 SB5
    TIME,10
    NSUBST,5
    OUTRES,ALL,ALL
    F,10,FY,-10
    SOLVE
    FDELE,ALL,ALL
  ! Hypothesis 0: LS6, LS7, LS8 and LS9 Ignored
    TIME, 11
    OUTRES,ALL,NONE
    SOLVE
    TIME, 12
    OUTRES,ALL,NONE
    SOLVE
    TIME, 13
    OUTRES,ALL,NONE
    SOLVE
    TIME, 14
    OUTRES,ALL,NONE
    SOLVE
  ! Hypothesis 3: LS10 SB10
    TIME,30
    NSUBST,10
    OUTRES,ALL,ALL
    F,10,FX,25
    SOLVE
    FDELE,ALL,ALL

/POST1
! ---------------------------------------------------------------------------------
! Definition and solving of combinations
! ---------------------------------------------------------------------------------
! Reset combinations module
  ~CMBCLR,
! Targets definition
  ~TRGDEF, 2,BEAM,F   ,X  ,ABS
  ~TRGDEF, 5,BEAM,S   ,DIR,MAX
  ~TRGDEF,10,BEAM,EPEL,DIR,MIN
! Combinations definition
  ! Combination 18: SELEC CFV    : [(2.0 or 3.0)*H1+(1.0 or 2.0)*H2]
      ~CMBDEF ,18,SELECTVC,2,,2
      ~STSTDEF,18,1,LSTEP,5,5    ! H2: LS5  SB5
      ~STSTDEF,18,2,LSTEP,10,10  ! H3: LS10 SB10
      ~STSTCFT,18,1,3.00,2.00
      ~STSTCFT,18,2,2.00,1.00
  ! Combine
    ~COMBINE

!--------------------------------------------------------------------------------------
! DATA CHECK
!--------------------------------------------------------------------------------------
! Data comparison number
  NComp = 6
  NComp_ch = 0

! Marix dim.
  *DIM,LABEL,CHAR,Ncomp,1
  *DIM,VALUE,,Ncomp,3
  *DIM,TOLER,,Ncomp,2

! ---------------------------------------------------------------------------------
! Tests de Control
! ---------------------------------------------------------------------------------
! Test 1:
! - Hypothesis: Combination 18, Target 2 (FXabs BEAM)
! - Point    : Element 200 End J
! - Datum    : FX
! - Solution : 2*H2+2*H3 = -44.7213
! Test 2:
! - Hypothesis: Combination 18, Target 2 (FXabs BEAM)
! - Point    : Element 200 End J
! - Datum    : EPELDIR
! - Solution : 2*H2+2*H3 = -4.47213E-05
! Test 3:
! - Hypothesis: Combination 18, Target 5 (SDIRmax BEAM)
! - Point    : Element 100 End I
! - Datum    : SDIR
! - Solution : 3*H2+2*H2 = 36.3361
! Test 4:
! - Hypothesis: Combination 18, Target 5 (SDIRmax BEAM)
! - Point    : Element 100 End I
! - Datum    : FX
! - Solution : 3*H2+2*H2 = 72.6722
! Test 5:
! - Hypothesis: Combination 18, Target 10 (EPELDIRmin BEAM)
! - Point    : Element 100 End I
! - Datum    : EPELDIR
! - Solution : 2*H2+1*H3 = 1.95656E-05
! Test 6:
! - Hypothesis: Combination 18, Target 10 (EPELDIRmin BEAM)
! - Point    : Element 100 End I
! - Datum    : FX
! - Solution : 2*H2+1*H3 = 39.1312
! ---------------------------------------------------------------------------------
! Point to combined data
  ~CMBDAT,2
! Test 1:
  ~CFSET,,18,2
  ETABLE,FX_J,SMISC,1
  *GET,VALUE(1,2),ELEM,200,ETAB,FX_J
  VALUE(1,1)= -44.7213
! Test 2:
  ~CFSET,,18,2
  ETABLE,EP,LEPEL,1
  *GET,VALUE(2,2),ELEM,200,ETAB,EP
  VALUE(2,1)= -4.47213E-05
! Test 3:
  ~CFSET,,18,5
  ETABLE,SD,LS,1
  *GET,VALUE(3,2),ELEM,100,ETAB,SD
  VALUE(3,1)=  36.3361
! Test 4:
  ~CFSET,,18,5
  ETABLE,FX_I,SMISC,1
  *GET,VALUE(4,2),ELEM,100,ETAB,FX_I
  VALUE(4,1)= 72.6722
! Test 5:
  ~CFSET,,18,10
  ETABLE,EP,LEPEL,1
  *GET,VALUE(5,2),ELEM,100,ETAB,EP
  VALUE(5,1)= 1.95656E-05
! Test 6:
  ~CFSET,,18,10
  ETABLE,FX_I,SMISC,1
  *GET,VALUE(6,2),ELEM,100,ETAB,FX_I
  VALUE(6,1)= 39.1311

! Labels
! ---------------------------------------------------------------------------------
  LABEL( 1) ='TEST1'
  LABEL( 2) ='TEST2'
  LABEL( 3) ='TEST3'
  LABEL( 4) ='TEST4'
  LABEL( 5) ='TEST5'
  LABEL( 6) ='TEST6'

! Warning and error tolerances
  TOLER( 1, 1)= 1E-4      $   TOLER( 1, 2)= 1E-3
  TOLER( 2, 1)= 1E-9      $   TOLER( 2, 2)= 1E-8
  TOLER( 3, 1)= 1E-4      $   TOLER( 3, 2)= 1E-3
  TOLER( 4, 1)= 1E-4      $   TOLER( 4, 2)= 1E-3
  TOLER( 5, 1)= 1E-9      $   TOLER( 5, 2)= 1E-8
  TOLER( 6, 1)= 1E-4      $   TOLER( 6, 2)= 1E-3

!--------------------------------------------------------------------------------------
! Results comparison
!--------------------------------------------------------------------------------------
  COMPARA.MAC

Results

Label	Target	CivilFEM	Ratio	Tolerance
TEST1	-44.721	-44.721	1.000	0.001
TEST2	-4.4721e-005	-4.4721e-005	1.000	1e-008
TEST3	36.336	36.336	1.000	0.001
TEST4	72.672	72.672	1.000	0.001
TEST5	1.9566e-005	1.9566e-005	1.000	1e-008
TEST6	39.131	39.131	1.000	0.001
