CFVR3902 - 8 node 3D laplace element test

Test 8 node 3D Laplace elements (SOLID170)

This example test geometry and thermal properties of a 3D 8 nde SOLID170 element.

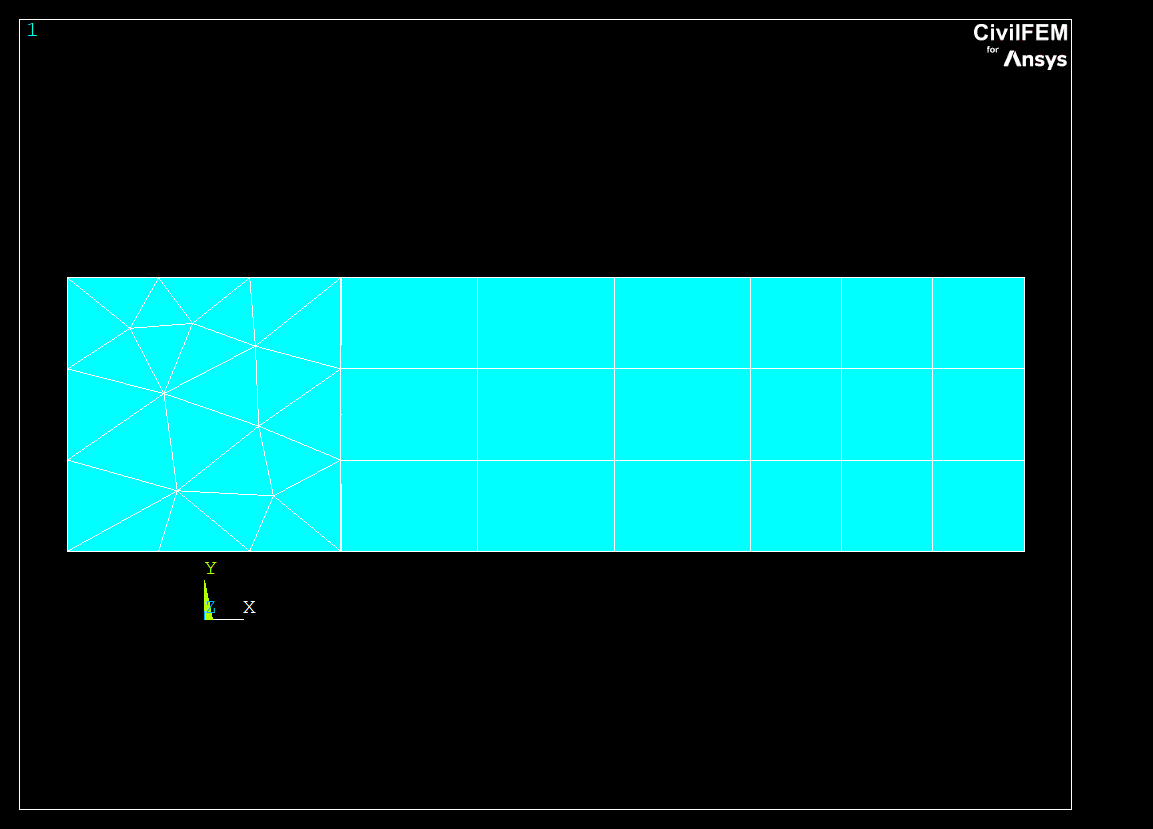

The model consists on an 3D "L" angle model, same as the one on the following picture.
The example is launched with ANSYS and with CivilFEM separately; it compares ANSYS results with the ~LPSOLVE command.
ANSYS uses a thermal laplace ecuation model in a SOLID70 element, and CivilFEM solves it as a Seepage analysis in a PLANE55 element. problem.

Element types used in the model: PLANE55, SOLID170

Needed CivilFEM Modules:
Geotechnical Module
Bridges and Civil Non Linearities Module
Advanced Prestressed Concrete Module

The example cannot be launched on an educational license.

KEYWORDS

Materials

Material Models

Model Statistics
Number of elements	593
Number of nodes	307
Number of civil materials	2
Number of cross sections	0
Number of shell vertices	0

Log file: CFVR3902.DAT

  FINISH
  ~CFCLEAR,,1
  NomFile='CFVR3902'
  /TITLE, %NomFile%, Testing 8 node 3D laplace element

!--------------------------------------------------------------------------------------
! MODEL WITH ANSYS
!--------------------------------------------------------------------------------------

/prep7
ET,1,SOLID70
ET,2,PLANE55

mp,kxx,1,10
mp,kyy,1,20
mp,kzz,1,20
mp,kxx,2,50
mp,kyy,2,6
mp,kZZ,2,5

BLOCK,-20,20,10,50,5,45,
BLOCK,20,80,10,50,5,45
BLOCK,-20,20,10,50,45,85
BLOCK,-20,20,10,50,85,125
BLOCK,80,120,10,50,5,45

VGLUE,1,2,3,4,5

MAT,1
type,2
mshape,1
amesh,2

type,1
EXTOPT,ACLEAR,1 ! Delete plane mesh
vsweep,1

MSHAPE,1
VMESH,6

MSHAPE,0
VMESH,7

MAT,2
MSHAPE,0
VMESH,8
MSHAPE,1
VMESH,9
/SOLU

DA,20,TEMP,100
DA,30,TEMP,500

SOLVE
/POST1

SET,1


! Results

NNUM  = NDINQR(0,12)
ELNUM = ELMIQR(0,12)
*DIM,H_ANSYS,,NNUM
*DIM,TGX_ANSYS,,NNUM
*DIM,TGY_ANSYS,,NNUM
*DIM,TGZ_ANSYS,,NNUM
*DIM,TFX_ANSYS,,NNUM
*DIM,TFY_ANSYS,,NNUM
*DIM,TFZ_ANSYS,,NNUM
*VGET,H_ANSYS,NODE,1,TEMP
*VGET,TFX_ANSYS,NODE,1,TF,X
*VGET,TFY_ANSYS,NODE,1,TF,Y
*VGET,TFZ_ANSYS,NODE,1,TF,Z
*VGET,TGX_ANSYS,NODE,1,TG,X
*VGET,TGY_ANSYS,NODE,1,TG,Y
*VGET,TGZ_ANSYS,NODE,1,TG,Z

PARSAV,ALL,E4_ANSYS

!--------------------------------------------------------------------------------------
! MODEL WITH CIVILFEM
!--------------------------------------------------------------------------------------

finish
~cfclear,,1

~CFACTIV,CIVILFEM,Y
~CFACTIV,GETC,Y

FINISH
~SEEPAGE,3D

/prep7

et,2,plane42

~cfmp,1,lib,soil,,sc
~cfmp,1,soil,kx,,10
~cfmp,1,soil,ky,,20
~cfmp,1,soil,kz,,20
~cfmp,2,lib,soil,,sc
~cfmp,2,soil,kx,,50
~cfmp,2,soil,ky,,6
~cfmp,2,soil,kz,,5

BLOCK,-20,20,10,50,5,45,
BLOCK,20,80,10,50,5,45
BLOCK,-20,20,10,50,45,85
BLOCK,-20,20,10,50,85,125
BLOCK,80,120,10,50,5,45

VGLUE,1,2,3,4,5

MAT,1
type,2
mshape,1
amesh,2

type,1
EXTOPT,ACLEAR,1 ! Delete plane mesh
vsweep,1

MSHAPE,1
VMESH,6

MSHAPE,0
VMESH,7

MAT,2
MSHAPE,0
VMESH,8
MSHAPE,1
VMESH,9
/SOLU

~DAHEAD,ADD,20,100
~DAHEAD,ADD,30,500

~LPSOLVE

/post1
file,file,seep
SET,1

PARRES,new,E4_ANSYS

*DIM,H_CF,,NNUM
*DIM,TGX_CF,,NNUM
*DIM,TGY_CF,,NNUM
*DIM,TGZ_CF,,NNUM
*DIM,TFX_CF,,NNUM
*DIM,TFY_CF,,NNUM
*DIM,TFZ_CF,,NNUM
*VGET,H_CF,NODE,1,HEAD
*VGET,TFX_CF,NODE,1,S,X
*VGET,TFY_CF,NODE,1,S,Y
*VGET,TFZ_CF,NODE,1,S,Z
*VGET,TGX_CF,NODE,1,EPEL,X
*VGET,TGY_CF,NODE,1,EPEL,Y
*VGET,TGZ_CF,NODE,1,EPEL,Z
! Tolerance
TOL = 1e-3
*DIM,VTOL,,NNUM
*VFILL,VTOL,RAMP,TOL

*DIM,H_COMP,,NNUM
*DIM,H_OK,,NNUM
*DIM,TGX_COMP,,NNUM
*DIM,TGX_OK,,NNUM
*DIM,TGY_COMP,,NNUM
*DIM,TGY_OK,,NNUM
*DIM,TGZ_COMP,,NNUM
*DIM,TGZ_OK,,NNUM
*DIM,TFX_COMP,,NNUM
*DIM,TFX_OK,,NNUM
*DIM,TFY_COMP,,NNUM
*DIM,TFY_OK,,NNUM
*DIM,TFZ_COMP,,NNUM
*DIM,TFZ_OK,,NNUM

*VABS, 1
*VOPER, H_COMP(1),H_ANSYS(1),SUB,H_CF(1)
*VOPER, H_OK(1),H_COMP(1),LE,VTOL(1)
*VSCFUN,H_BOOL,SUM,H_OK    ! HBOOL debe ser = NNUM

*VABS, 1
*VOPER, TGX_COMP(1),TGX_ANSYS(1),SUB,TGX_CF(1)
*VOPER, TGX_OK(1),TGX_COMP(1),LE,VTOL(1)
*VSCFUN,TGX_BOOL,SUM,TGX_OK

*VABS, 1
*VOPER, TGY_COMP(1),TGY_ANSYS(1),SUB,TGY_CF(1)
*VOPER, TGY_OK(1),TGY_COMP(1),LE,VTOL(1)
*VSCFUN,TGY_BOOL,SUM,TGY_OK

*VABS, 1
*VOPER, TGZ_COMP(1), TGZ_ANSYS(1),SUB,TGZ_CF(1)
*VOPER, TGZ_OK(1)  , TGZ_COMP(1),LE,VTOL(1)
*VSCFUN,TGZ_BOOL,SUM,TGZ_OK

*VABS, 1
*VOPER, TFX_COMP(1),TFX_ANSYS(1),SUB,TFX_CF(1)
*VOPER, TFX_OK(1),TFX_COMP(1),LE,VTOL(1)
*VSCFUN,TFX_BOOL,SUM,TFX_OK

*VABS, 1
*VOPER, TFY_COMP(1),TFY_ANSYS(1),SUB,TFY_CF(1)
*VOPER, TFY_OK(1),TFY_COMP(1),LE,VTOL(1)
*VSCFUN,TFY_BOOL,SUM,TFY_OK

*VABS, 1
*VOPER, TFZ_COMP(1) ,TFZ_ANSYS(1),SUB,TFZ_CF(1)
*VOPER, TFZ_OK(1)   ,TFZ_COMP(1),LE,VTOL(1)
*VSCFUN,TFZ_BOOL,SUM,TFZ_OK
/IMAGE,SAVE,%NomFile%,BMP	!Save Image to File
!--------------------------------------------------------------------------------------
! DATA CHECK
!--------------------------------------------------------------------------------------
! Data comparison number
  NComp    =  7
  NComp_ch =  0

! Marix dim.
  *DIM,LABEL,CHAR,Ncomp,1
  *DIM,LABEL_CH,CHAR,Ncomp_ch,1
  *DIM,VALUE,,Ncomp,3
  *DIM,VALUE_CH,CHAR,Ncomp_ch,3
  *DIM,TOLER,,Ncomp,2

! Labels
  LABEL(1,1) = 'H'
  LABEL(2,1) = 'TGX'
  LABEL(3,1) = 'TGY'
  LABEL(4,1) = 'TGZ'
  LABEL(5,1) = 'TFX'
  LABEL(6,1) = 'TFY'
  LABEL(7,1) = 'TFZ'

! Correct values
  VALUE(1,1)=NNUM
  VALUE(2,1)=NNUM
  VALUE(3,1)=NNUM
  VALUE(4,1)=NNUM
  VALUE(5,1)=NNUM
  VALUE(6,1)=NNUM
  VALUE(7,1)=NNUM

! Obtained values
  VALUE(1,2)= H_BOOL
  VALUE(2,2)= TGX_BOOL
  VALUE(3,2)= TGY_BOOL
  VALUE(4,2)= TGZ_BOOL
  VALUE(5,2)= TFX_BOOL
  VALUE(6,2)= TFY_BOOL
  VALUE(7,2)= TFZ_BOOL

! Warning and error tolerances
  *DO,II,1,7
    TOLER(II, 1)= 1E-9
    TOLER(II, 2)= 1E-9
  *ENDDO

!--------------------------------------------------------------------------------------
! Results comparison
!--------------------------------------------------------------------------------------
  COMPARA.MAC

Results

Label	Target	CivilFEM	Ratio	Tolerance
H	307	0	2.000	1e-009
TGX	307	38	1.876	1e-009
TGY	307	141	1.541	1e-009
TGZ	307	48	1.844	1e-009
TFX	307	9	1.971	1e-009
TFY	307	78	1.746	1e-009
TFZ	307	18	1.941	1e-009
