CFVR0806 - Combination module test with LINK10 elements

Example to check the combinations utility with LINK10 elements

This example checks the functionality of the combinations module with LINK 1 elements.

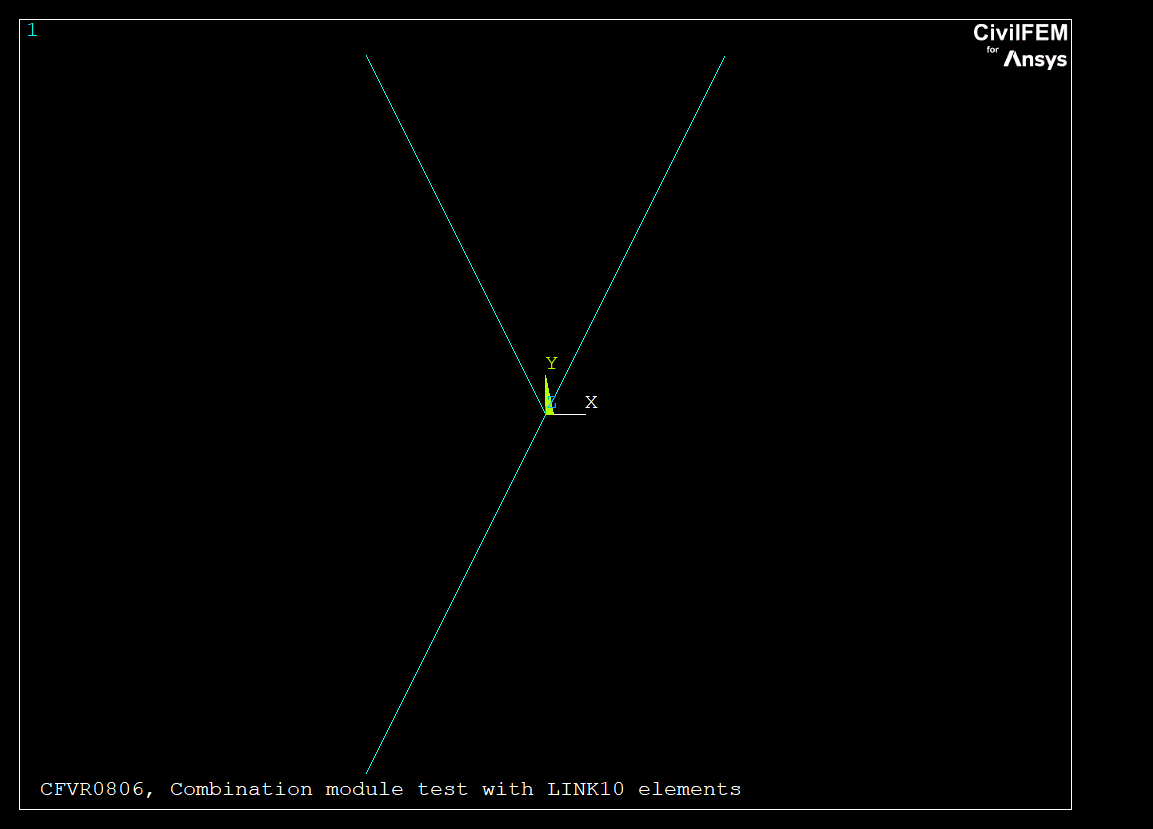

The model is a simple 60º X shaped model without the lower right beam. Each beam has different real constants and material properties, which do not represent a physical problem.
The load cases are:

  • Load Step 2, Sub Step 2: Horizontal load of 15 N (left direction) on the center node (10).
  • Load Step 5, Sub Step 5: Vertical load of 10 N (downwards) on the center node (10).
  • Load Step 10, Sub Step 10: Horizontal load of 25 N (right direction) on the center node (10).
No Civil materials or beam properties have been used in this example, only ANSYS results will be checked.

The targets for the combinations are:
  • Target 2: FX in BEAMS (ABS value)
  • Target 5: S DIR in BEAMS (Maximum value)
  • Target 10: EPEL DIR in BEAMS (Minimum value)

The combination rule defined is:
  • Combination rule 18: SELEC CFV - [(2.0 or 3.0)*H1, (1.0 or 2.0)*H2]

Element types used in the model: LINK10

Needed CivilFEM Modules:
Geotechnical Module
Bridges and Civil Non Linearities Module
Advanced Prestressed Concrete Module

The example can be launched on an educational license.
KEYWORDS
Beam
Combinations


Model Statistics
Number of elements 3
Number of nodes 4
Number of civil materials 0
Number of cross sections 0
Number of shell vertices 0

Log file: CFVR0806.DAT


  FINISH
  ~CFCLEAR,,1
 AnsLic='ansys'
  NomFile='CFVR0806'
  /TITLE, %NomFile%, Combination module test with LINK10 elements

! ---------------------------------------------------------------------------------
! Model definition and solve
! ---------------------------------------------------------------------------------
!  Load scheme:
!                          0.5 m     0.5 m
!                       |---------|---------|
!               -   N15 o                   o N20
!               |        \                 /
!               |         \   R100        / R200
!               |          \  M100       /  M200
!               |           \ E100      /   E200
!             1.0 m          \         /
!               |             \       /
!               |              \     /
!               |               \   /
!               |   (LS2 SB5)    \ /
!               -     H=15  ----> 0----> H=25 (LS10 SB5)
!               |            N10 /|
!               |               / |
!               |              /  v V=10 (LS5 SB5)
!               |             /
!             1.0 m          /
!               |           / R200
!               |          /  M200
!               |         /   E300
!               |        /
!               -   N25 o
! ---------------------------------------------------------------------------------
/PREP7
! Materials
  MP,EX,100,1E6
  MP,EX,200,2E6
! Sections
  A=2
  R,100,A
  R,200,A/4
! Element types
  ET,5,Link10
! Nodes
  N, 10, 0.0, 0
  N, 15,-0.5, 1
  N, 20, 0.5, 1
  N, 25,-0.5,-1
! Elements
  MAT,100 $ REAL,100 $ TYPE, 5 $ EN,100, 15, 10
  MAT,200 $ REAL,200 $ TYPE, 5 $ EN,200, 10, 20
  MAT,200 $ REAL,200 $ TYPE, 5 $ EN,300, 25, 10
! Boundary conditions
  D,15,ALL
  D,20,ALL
  D,25,ALL
! Plot
  EPLOT
! Initial hypothesis solve
  /SOLU
  SOLCONTROL,OFF
  AUTOTS,OFF
  ! Hypothesis 0: LS1 Ignored
    TIME, 2
    OUTRES,ALL,NONE
    SOLVE
  ! Hypothesis 1: LS2 SB5
    TIME,5
    NSUBST,5
    OUTRES,ALL,ALL
    F,10,FX,15
    EPLOT
    /IMAGE,SAVE,%NomFile%,BMP
    SOLVE
    FDELE,ALL,ALL
  ! Hypothesis 0: LS3 and LS4 Ignored
    TIME, 6
    OUTRES,ALL,NONE
    SOLVE
    TIME, 7
    OUTRES,ALL,NONE
    SOLVE
  ! Hypothesis 2: LS5 SB5
    TIME,10
    NSUBST,5
    OUTRES,ALL,ALL
    F,10,FY,-10
    SOLVE
!   FDELE,ALL,ALL
  ! Hypothesis 0: LS6, LS7, LS8 and LS9 Ignored
    TIME, 11
    OUTRES,ALL,NONE
    SOLVE
    TIME, 12
    OUTRES,ALL,NONE
    SOLVE
    TIME, 13
    OUTRES,ALL,NONE
    SOLVE
    TIME, 14
    OUTRES,ALL,NONE
    SOLVE
    FDELE,ALL,ALL
  ! Hypothesis 3: LS10 SB5
    TIME,30
    NSUBST,5
    OUTRES,ALL,ALL
    F,10,FX,25
    SOLVE
    FDELE,ALL,ALL

/POST1
! ---------------------------------------------------------------------------------
! Definition and solving of combinations
! ---------------------------------------------------------------------------------
! Reset combinations module
  ~CMBCLR,
! Targets definition
  ~TRGDEF, 2,BEAM,F   ,X  ,ABS
  ~TRGDEF, 5,BEAM,S   ,DIR,MAX
  ~TRGDEF,10,BEAM,EPEL,DIR,MIN
! Combinations definition
  ! Combination 18: SELEC CFV    : [(2.0 or 3.0)*H1+(1.0 or 2.0)*H2]
      ~CMBDEF ,18,SELECTVC,2,,2
      ~STSTDEF,18,1,LSTEP,5,5    ! H2: LS5  SB5
      ~STSTDEF,18,2,LSTEP,10,5   ! H3: LS10 SB5
      ~STSTCFT,18,1,3.00,2.00
      ~STSTCFT,18,2,2.00,1.00
! Combine
    ~COMBINE

!--------------------------------------------------------------------------------------
! DATA CHECK
!--------------------------------------------------------------------------------------
! Data comparision number
  NComp = 6
  NComp_ch = 0

! Marix dim.
  *DIM,LABEL,CHAR,Ncomp,1
  *DIM,VALUE,,Ncomp,3
  *DIM,TOLER,,Ncomp,2
! ---------------------------------------------------------------------------------
! Tests de Control
! ---------------------------------------------------------------------------------
! Test 1:
! - Hypothesis: Combination 18, Target 2 (FXabs BEAM)
! - Point    : Element 200 End J
! - Datum    : FX
! - Solution : 3*H2+(1 o 2)*H3 = 1.6770510E+01 (ambiguo)
! Test 2:
! - Hypothesis: Combination 18, Target 2 (FXabs BEAM)
! - Point    : Element 100 End J
! - Datum    : SDIR
! - Solution : 3*H2+2*H3 = 3.6336105E+01
! Test 3:
! - Hypothesis: Combination 18, Target 5 (SDIRmax BEAM)
! - Point    : Element 100 End I
! - Datum    : SDIR
! - Solution : 3*H2+2*H2 = 3.6336105E+01
! Test 4:
! - Hypothesis: Combination 18, Target 5 (SDIRmax BEAM)
! - Point    : Element 100 End I
! - Datum    : FX
! - Solution : 3*H2+2*H2 = 7.2672209E+01
! Test 5:
! - Hypothesis: Combination 18, Target 10 (EPELDIRmin BEAM)
! - Point    : Element 100 End I
! - Datum    : EPELDIR
! - Solution : 2*H2+1*H3 = 1.9565595E-05
! Test 6:
! - Hypothesis: Combination 18, Target 10 (EPELDIRmin BEAM)
! - Point    : Element 100 End I
! - Datum    : FX
! - Solution : 2*H2+1*H3 = 3.9131190E+01
! ---------------------------------------------------------------------------------
! Point to combined data
  ~CMBDAT,2
! Test 1:
  ~CFSET,,18,2
  ETABLE,FX_J,SMISC,1
  *GET,VALUE(1,2),ELEM,200,ETAB,FX_J
  VALUE(1,1)= 1.6770510E+01
! Test 2:
  ~CFSET,,18,2
  ETABLE,SD,LS,1
  *GET,VALUE(2,2),ELEM,100,ETAB,SD
  VALUE(2,1)= 3.6336105E+01
! Test 3:
  ~CFSET,,18,5
  ETABLE,SD,LS,1
  *GET,VALUE(3,2),ELEM,100,ETAB,SD
  VALUE(3,1)=  3.6336105E+01
! Test 4:
  ~CFSET,,18,5
  ETABLE,FX_I,SMISC,1
  *GET,VALUE(4,2),ELEM,100,ETAB,FX_I
  VALUE(4,1)= 7.2672209E+01
! Test 5:
  ~CFSET,,18,10
  ETABLE,EP,LEPEL,1
  *GET,VALUE(5,2),ELEM,100,ETAB,EP
  VALUE(5,1)= 1.9565595E-05
! Test 6:
  ~CFSET,,18,10
  ETABLE,FX_I,SMISC,1
  *GET,VALUE(6,2),ELEM,100,ETAB,FX_I
  VALUE(6,1)= 3.9131190E+01

! Labels
!--------------------------------------------------------------------------------------
  LABEL( 1) ='TEST1'
  LABEL( 2) ='TEST2'
  LABEL( 3) ='TEST3'
  LABEL( 4) ='TEST4'
  LABEL( 5) ='TEST5'
  LABEL( 6) ='TEST6'

! Warning and error tolerances
  TOLER( 1, 1)= 1E-6      $   TOLER( 1, 2)= 1E-5
  TOLER( 2, 1)= 1E-6      $   TOLER( 2, 2)= 1E-5
  TOLER( 3, 1)= 1E-6      $   TOLER( 3, 2)= 1E-5
  TOLER( 4, 1)= 1E-6      $   TOLER( 4, 2)= 1E-5
  TOLER( 5, 1)= 1E-12     $   TOLER( 5, 2)= 1E-11
  TOLER( 6, 1)= 1E-6      $   TOLER( 6, 2)= 1E-5

!--------------------------------------------------------------------------------------
! Results comparison
!--------------------------------------------------------------------------------------
  COMPARA.MAC

Results

LabelTargetCivilFEMRatioTolerance
TEST1 16.771 16.7711.000 1e-005
TEST2 36.336 36.3361.000 1e-005
TEST3 36.336 36.3361.000 1e-005
TEST4 72.672 72.6721.000 1e-005
TEST51.9566e-0051.9566e-0051.000 1e-011
TEST6 39.131 39.1311.000 1e-005
