CFVR3208 - Slope stability from FEM analysis
Slope stability analysis from FEM analysis results.

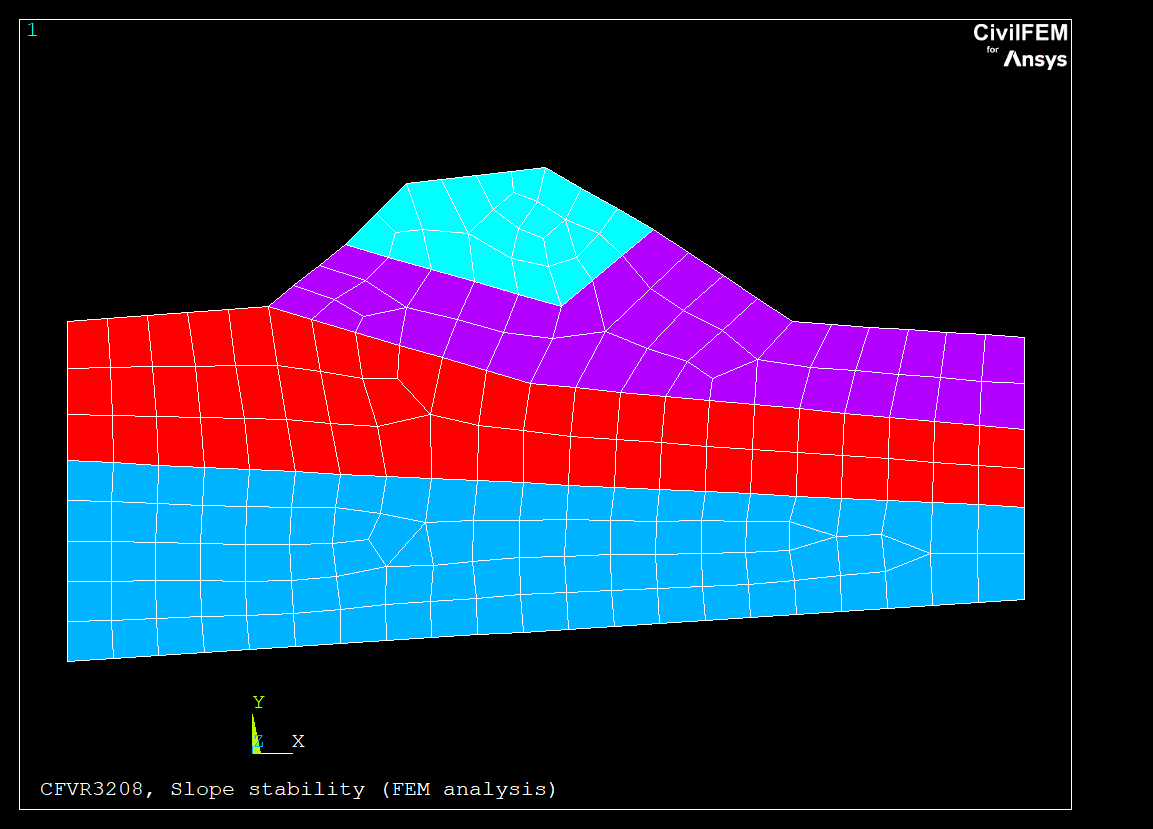

A plane model as shown in the figure is used to check the slope stability analysis from FEM analysis results.
The model is made off four layers of materials with the following dry specific weight (from top to bottom):
- 12600 N/m2
- 14400 N/m2
- 11200 N/m2
- 9000 N/m2
The only action on the structure is its self weight.
Element types used in the model: PLANE82 Needed CivilFEM Modules: |
|
| Model Statistics | |
| Number of elements | 197 |
| Number of nodes | 650 |
| Number of civil materials | 4 |
| Number of cross sections | 0 |
| Number of shell vertices | 0 |
Log file: CFVR3208.DAT
FINISH ~CFCLEAR,,1 ~CFACTIV,GETC,Y NomFile='CFVR3208' /TITLE, %NomFile%, Slope stability (FEM analysis) ! ------------------------------------------------------------------------------------- ! 1. Initial data ! ------------------------------------------------------------------------------------- ! CivilFEM SETUP ~UNITS,SI /PREP7 ! 2. Materials ! -------------------------------------------------- ~CFMP,1,LIB,SOIL,,OH ~CFMP,2,LIB,SOIL,,CH ~CFMP,3,LIB,SOIL,,SC ~CFMP,4,LIB,SOIL,,PH ~CFMP,1,Soil,GAMD,,12600 ! OH ~CFMP,2,Soil,GAMD,,14400 ! CH ~CFMP,3,Soil,GAMD,,11200 ! SC ~CFMP,4,Soil,GAMD,,9000 ! PH ! 3. Elements ! -------------------------------------------------- ET,1,PLANE82 ! 4. Model ! -------------------------------------------------- K, 1,-12,28 K, 2, 1,29 K, 3, 10,37 K, 4, 19,38 K, 5, 35,28 K, 6, 50,27 K, 7, 6,33 K, 8, 20,29 K, 9, 26,34 K,10, 18,24 K,11, 50,21 K,12,-12,19 K,13, 50,16 K,14,-12, 6 K,15, 50,10 A,7,8,9,4,3 A,2,7,8,9,5,6,11,10 A,1,2,10,11,13,12 A,15,13,12,14 AESIZE,ALL,3 *DO,I,1,4 MAT,I AMESH,I *ENDDO /NUMBER,1 /PNUM,MAT,1 EPLOT /IMAGE, SAVE, %NomFile%,BMP ! 5. Capturing Model ! -------------------------------------------------- pp1=node(kx(1),ky(1),kz(1)) pp2=node(kx(6),ky(6),kz(6)) pp3=node(kx(5),ky(5),kz(5)) ~SLPIN,PP1,PP2,PP3 ! 6. Circles Centres Grid Input ! -------------------------------------------------- K,16,21,41 K,17,35,32 K,18,42,43 k,19,28,52 ~SLPCIRK,16,19,17,5,6 ! 7. Tangents Input ! -------------------------------------------------- K,20,34,27 K,21,34,11 K,22, 0,11 K,23,18,37 ~SLPTANK,20,23,22,21,10 ! 8. Solve ! -------------------------------------------------- /SOLU ALLS KSEL,S,,,14,15 LSLK,S,1 NSLL,S D,ALL,ALL,0 ALLS ACEL,,9.8 SOLVE /POST1 ~SLPOPT,,,,,2 ~SLPSOL,10 !-------------------------------------------------------------------------------------- ! 9. Data Check !-------------------------------------------------------------------------------------- ! Data comparison number NComp = 3 NComp_ch = 0 ! Marix dim. *DIM,LABEL,CHAR,Ncomp,1 *DIM,LABEL_CH,CHAR,Ncomp_ch,1 *DIM,VALUE,,Ncomp,3 *DIM,VALUE_CH,CHAR,Ncomp_ch,3 *DIM,TOLER,,Ncomp,2 !-------------------------------------------------------------------------------------- ! 10. Labels, Correct data, obtained data !-------------------------------------------------------------------------------------- VALUE( 1,1) = 1.535 LABEL( 1) = 'FEM262' ~CFGET,VALUE( 1,2),SLOPE,,RES,F,,2,262 VALUE( 2,1) = 1.559 LABEL( 2) = 'FEM202' ~CFGET,VALUE( 2,2),SLOPE,,RES,F,,2,202 VALUE( 3,1) = 1.686 LABEL( 3) = 'FEM152' ~CFGET,VALUE( 3,2),SLOPE,,RES,F,,2,152 ! Warning and error tolerances *DO,II,1,NComp TOLER(II,1) = VALUE(II,1)*0.12 TOLER(II,2) = VALUE(II,1)*0.12 *ENDDO !-------------------------------------------------------------------------------------- ! 11. Results comparison !-------------------------------------------------------------------------------------- COMPARA.MAC |
Results
| Label | Target | CivilFEM | Ratio | Tolerance |
| FEM262 | 1.535 | 1.6322 | 0.937 | 0.1842 |
| FEM202 | 1.559 | 1.7005 | 0.909 | 0.1871 |
| FEM152 | 1.686 | 1.8654 | 0.894 | 0.2023 |
