CFVR3205 - Slope stability with water pressure, seism and forces

Slope stability analysis, with water pressure, an impermeable layer, seismic acceleration and punctual forces.

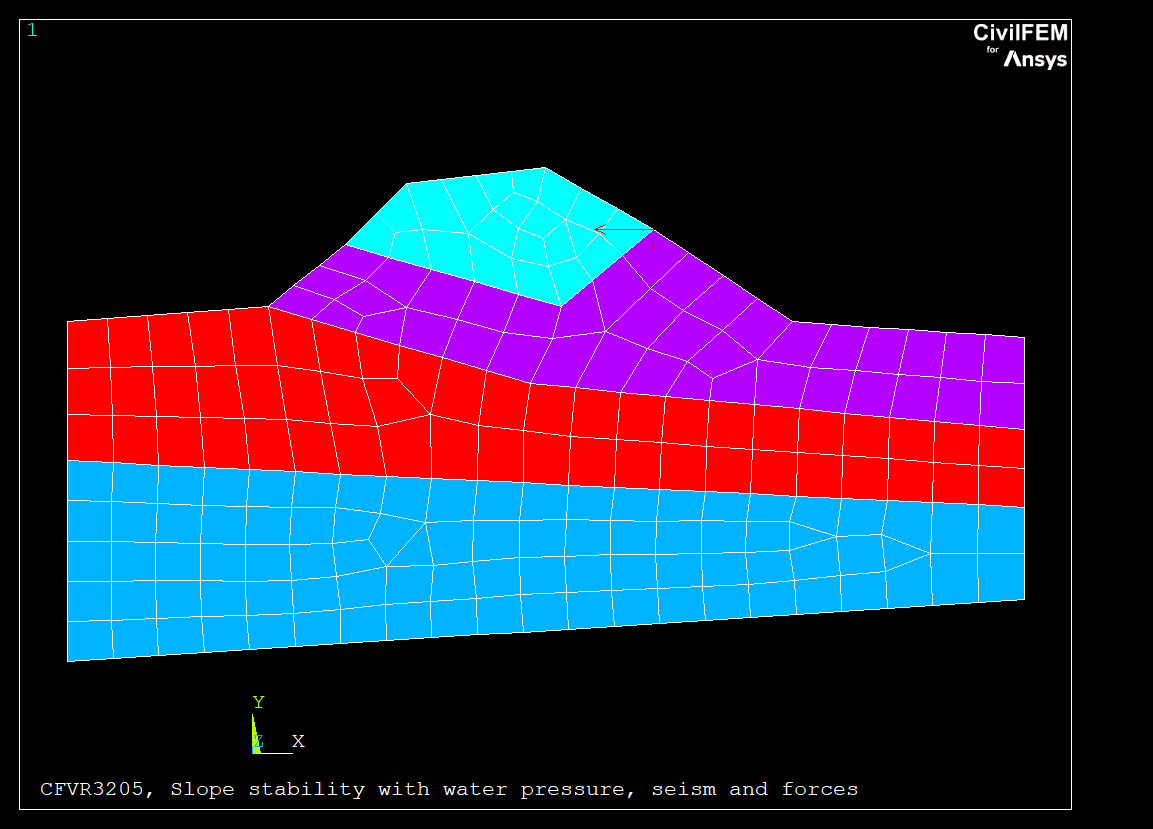

A plane model as shown in the figure is used to check the slope stability analysis. Fellenius, Bishop, Janbu and Modified Janbu methods are used.
The model is made off four layers of materials with the following properties (from top to bottom):

  • Specific weight 1 = 12600 N/m2; Porosity 1 = 0.10
  • Specific weight 2 = 14400 N/m2
  • Specific weight 3 = 11200 N/m2; Porosity 3 = 0.40
  • Specific weight 4 = 9000 N/m2; Porosity 4 = 0.10
The terrain has a water table defined as a polygonal line. The second layer is considered impermeable, no water pore pressure will act on it (RUSI=0).
The actions on the structure are self weight, a horizontal acceleration due to seismic actions of 0.30g and a puntual force on the slope with the following components:
  • FX = -948600 N
  • FY = -316220 N

Element types used in the model: PLANE82

Needed CivilFEM Modules:
Geotechnical Module
Bridges and Civil Non Linearities Module
Advanced Prestressed Concrete Module

The example cannot be launched on an educational license.
KEYWORDS
Geotechnics
Slope Stability


Model Statistics
Number of elements 197
Number of nodes 650
Number of civil materials 4
Number of cross sections 0
Number of shell vertices 0

Log file: CFVR3205.DAT


  FINISH
  ~CFCLEAR,,1
  ~CFACTIV,GETC,Y
  NomFile='CFVR3205'
  /TITLE, %NomFile%, Slope stability with water pressure, seism and forces

! -------------------------------------------------------------------------------------
! 1. Initial data
! -------------------------------------------------------------------------------------
! CivilFEM SETUP
  ~UNITS,SI

/PREP7
! 2. Materials
! --------------------------------------------------
~CFMP,1,LIB,SOIL,,OH
~CFMP,2,LIB,SOIL,,CH
~CFMP,3,LIB,SOIL,,SC
~CFMP,4,LIB,SOIL,,PH
~CFMP,1,Soil,GAMD,,12600 ! OH
~CFMP,2,Soil,GAMD,,14400 ! CH
~CFMP,3,Soil,GAMD,,11200 ! SC
~CFMP,4,Soil,GAMD,,9000  ! PH
*DO,II,1,4
  ~CFMP,II,SOIL,RUSI,,1
*ENDDO
~CFMP,2,SOIL,RUSI,,0

! 3. Elements
! --------------------------------------------------
ET,1,PLANE82

! 4. Model
! --------------------------------------------------
K, 1,-12,28
K, 2,  1,29
K, 3, 10,37
K, 4, 19,38
K, 5, 35,28
K, 6, 50,27
K, 7,  6,33
K, 8, 20,29
K, 9, 26,34
K,10, 18,24
K,11, 50,21
K,12,-12,19
K,13, 50,16
K,14,-12, 6
K,15, 50,10

A,7,8,9,4,3
A,2,7,8,9,5,6,11,10
A,1,2,10,11,13,12
A,15,13,12,14

AESIZE,ALL,3

*DO,I,1,4
  MAT,I
  AMESH,I
*ENDDO

! 5. Capturing Model
! --------------------------------------------------
pp1=node(kx(1),ky(1),kz(1))
pp2=node(kx(6),ky(6),kz(6))
pp3=node(kx(5),ky(5),kz(5))
pp9=node(kx(9),ky(9),kz(9))
F,pp9,FX,-948600
F,pp9,FY,-316220
~SLPIN,PP1,PP2,PP3

/PBC,ALL,,1
/NUMBER,1
/PNUM,MAT,1
EPLOT
/IMAGE, SAVE, %NomFile%,BMP

! 6. Circles Centres Grid Input
! --------------------------------------------------
K,16,21,41
K,17,35,32
K,18,42,43
k,19,28,52
~SLPCIRK,16,19,17,5,6

! 7. Tangents Input
! --------------------------------------------------
K,20,34,27
K,21,34,11
K,22, 0,11
K,23,18,37
~SLPTANK,20,23,22,21,10

! 8. Hydrostatic Pressure
! --------------------------------------------------
~SLPPWP,5,0,-12,27, 01,27, 16,35, 41,25, 50,25

! 9. Data Check
! --------------------------------------------------
! Data comparison number
  NComp    = 30*4
  NComp_ch = 0

! Marix dim.
  *DIM,LABEL,CHAR,Ncomp,1
  *DIM,LABEL_CH,CHAR,Ncomp_ch,1
  *DIM,VALUE,,Ncomp,3
  *DIM,VALUE_CH,CHAR,Ncomp_ch,3
  *DIM,TOLER,,Ncomp,2

! 10. Labels, Correct data, obtained data
! --------------------------------------------------
*DIM,AUXVECT,ARRAY,10
*DIM,AUXVEC2,ARRAY,10
/POST1
~SLPSOL,0,,0.3 ! Fellenius
*DO,JJ,1,30
  LABEL(JJ) = 'FEL' %JJ%
  *DO,II,1,10
     ~CFGET,AUXVECT(II),SLOPE,,RES,F,,2,(JJ-1)*10 + II
  *ENDDO
  *VOPER,AUXVEC2,AUXVECT,MULT,AUXVECT
  *VFUN,AUXVEC2,SQRT,AUXVEC2
  *VFUN,AUXVEC2,ASORT,AUXVEC2
  VALUE(JJ,2) = AUXVEC2(1)
*ENDDO

VALUE(  1,1) =  1.228
VALUE(  2,1) =  1.000
VALUE(  3,1) =  1.000
VALUE(  4,1) =  50.00
VALUE(  5,1) =  1.619
VALUE(  6,1) =  1.961
VALUE(  7,1) =  1.019
VALUE(  8,1) =  1.000
VALUE(  9,1) =  1.000
VALUE( 10,1) =  1.000
VALUE( 11,1) =  1.439
VALUE( 12,1) =  1.473
VALUE( 13,1) =  0.926
VALUE( 14,1) =  0.776
VALUE( 15,1) =  1.060
VALUE( 16,1) =  0.978
VALUE( 17,1) =  1.325
VALUE( 18,1) =  1.892
VALUE( 19,1) =  0.746
VALUE( 20,1) =  0.767
VALUE( 21,1) =  1.038
VALUE( 22,1) =  1.441
VALUE( 23,1) =  2.018
VALUE( 24,1) =  1.980
VALUE( 25,1) =  0.837
VALUE( 26,1) =  1.128
VALUE( 27,1) =  1.651
VALUE( 28,1) =  1.997
VALUE( 29,1) =  4.011
VALUE( 30,1) =  1.960

~SLPSOL,1,,0.3 ! Bishop
*DO,JJ,1,30
  LABEL(JJ+30) = 'BIS' %JJ+30%
  *DO,II,1,10
    ~CFGET,AUXVECT(II),SLOPE,,RES,F,,2,(JJ-1)*10 + II
  *ENDDO
  *VOPER,AUXVEC2,AUXVECT,MULT,AUXVECT
  *VFUN,AUXVEC2,SQRT,AUXVEC2
  *VFUN,AUXVEC2,ASORT,AUXVEC2
  VALUE(JJ+30,2) = AUXVEC2(1)
*ENDDO

VALUE( 31,1) =  1.319
VALUE( 32,1) =  1.709
VALUE( 33,1) =  1.000
VALUE( 34,1) =  50.00
VALUE( 35,1) =  1.674
VALUE( 36,1) =  2.086
VALUE( 37,1) =  1.494
VALUE( 38,1) =  1.200
VALUE( 39,1) =  1.986
VALUE( 40,1) =  1.677
VALUE( 41,1) =  1.475
VALUE( 42,1) =  1.705
VALUE( 43,1) =  1.294
VALUE( 44,1) =  1.110
VALUE( 45,1) =  1.276
VALUE( 46,1) =  1.174
VALUE( 47,1) =  1.400
VALUE( 48,1) =  1.809
VALUE( 49,1) =  1.101
VALUE( 50,1) =  1.054
VALUE( 51,1) =  1.222
VALUE( 52,1) =  1.545
VALUE( 53,1) =  1.971
VALUE( 54,1) =  2.094
VALUE( 55,1) =  1.100
VALUE( 56,1) =  1.300
VALUE( 57,1) =  1.769
VALUE( 58,1) =  1.996
VALUE( 59,1) =  3.641
VALUE( 60,1) =  2.066

~SLPSOL,2,,0.3 ! Janbu
*DO,JJ,1,30
  LABEL(JJ+60) = 'JAN' %JJ+60%
  *DO,II,1,10
     ~CFGET,AUXVECT(II),SLOPE,,RES,F,,2,(JJ-1)*10 + II
  *ENDDO
  *VOPER,AUXVEC2,AUXVECT,MULT,AUXVECT
  *VFUN,AUXVEC2,SQRT,AUXVEC2
  *VFUN,AUXVEC2,ASORT,AUXVEC2
  VALUE(JJ+60,2) = AUXVEC2(1)
*ENDDO

VALUE( 61,1) =  1.107
VALUE( 62,1) =  1.647
VALUE( 63,1) =  1.000
VALUE( 64,1) =  0.001
VALUE( 65,1) =  1.568
VALUE( 66,1) =  1.899
VALUE( 67,1) =  1.495
VALUE( 68,1) =  1.000
VALUE( 69,1) =  1.000
VALUE( 70,1) =  1.000
VALUE( 71,1) =  1.405
VALUE( 72,1) =  0.002
VALUE( 73,1) =  1.285
VALUE( 74,1) =  1.103
VALUE( 75,1) =  1.335
VALUE( 76,1) =  1.271
VALUE( 77,1) =  1.794
VALUE( 78,1) =  1.944
VALUE( 79,1) =  1.065
VALUE( 80,1) =  1.044
VALUE( 81,1) =  1.264
VALUE( 82,1) =  1.703
VALUE( 83,1) =  2.890
VALUE( 84,1) =  1.945
VALUE( 85,1) =  1.087
VALUE( 86,1) =  1.329
VALUE( 87,1) =  1.864
VALUE( 88,1) =  2.459
VALUE( 89,1) =  5.000
VALUE( 90,1) =  1.930

~SLPSOL,3,,0.3! Modified Janbu
*DO,JJ,1,30
  LABEL(JJ+90) = 'JMD' %JJ+90%
  *DO,II,1,10
     ~CFGET,AUXVECT(II),SLOPE,,RES,F,,2,(JJ-1)*10 + II
  *ENDDO
  *VOPER,AUXVEC2,AUXVECT,MULT,AUXVECT
  *VFUN,AUXVEC2,SQRT,AUXVEC2
  *VFUN,AUXVEC2,ASORT,AUXVEC2
  VALUE(JJ+90,2) = AUXVEC2(1)
*ENDDO

VALUE( 91,1) =  1.196
VALUE( 92,1) =  1.187
VALUE( 93,1) =  1.464
VALUE( 94,1) =  0.002
VALUE( 95,1) =  1.700
VALUE( 96,1) =  2.073
VALUE( 97,1) =  1.155
VALUE( 98,1) =  0.027
VALUE( 99,1) =  1.024
VALUE(100,1) =  1.171
VALUE(101,1) =  1.493
VALUE(102,1) =  1.585
VALUE(103,1) =  1.070
VALUE(104,1) =  0.968
VALUE(105,1) =  0.994
VALUE(106,1) =  1.186
VALUE(107,1) =  1.464
VALUE(108,1) =  2.091
VALUE(109,1) =  1.009
VALUE(110,1) =  0.990
VALUE(111,1) =  1.222
VALUE(112,1) =  1.494
VALUE(113,1) =  2.280
VALUE(114,1) =  2.089
VALUE(115,1) =  1.026
VALUE(116,1) =  1.279
VALUE(117,1) =  1.677
VALUE(118,1) =  2.058
VALUE(119,1) =  5.698
VALUE(120,1) =  2.069

! Warning and error tolerances
  *DO,II,1,NComp
    TOLER(II,1) = VALUE(II,1)*0.05
    TOLER(II,2) = VALUE(II,1)*0.05
  *ENDDO
! Known exceptions
  I=  2 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I=  3 $ TOLER(  I,1) = VALUE(I,1)*0.40  $  TOLER(  I,2) = VALUE(I,1)*0.40
  I=  4 $ TOLER(  I,1) = VALUE(I,1)*0.90  $  TOLER(  I,2) = VALUE(I,1)*0.90
  I=  7 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I=  8 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I=  9 $ TOLER(  I,1) = VALUE(I,1)*0.40  $  TOLER(  I,2) = VALUE(I,1)*0.40
  I= 10 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 11 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 13 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 15 $ TOLER(  I,1) = VALUE(I,1)*0.25  $  TOLER(  I,2) = VALUE(I,1)*0.25
  I= 17 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 18 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 19 $ TOLER(  I,1) = VALUE(I,1)*0.25  $  TOLER(  I,2) = VALUE(I,1)*0.25
  I= 20 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 21 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 22 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 23 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 25 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 26 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 28 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 29 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 32 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 33 $ TOLER(  I,1) = VALUE(I,1)*0.90  $  TOLER(  I,2) = VALUE(I,1)*0.90
  I= 34 $ TOLER(  I,1) = VALUE(I,1)*0.90  $  TOLER(  I,2) = VALUE(I,1)*0.90
  I= 37 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 38 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 39 $ TOLER(  I,1) = VALUE(I,1)*0.40  $  TOLER(  I,2) = VALUE(I,1)*0.40
  I= 40 $ TOLER(  I,1) = VALUE(I,1)*0.40  $  TOLER(  I,2) = VALUE(I,1)*0.40
  I= 41 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 43 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 44 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 45 $ TOLER(  I,1) = VALUE(I,1)*0.25  $  TOLER(  I,2) = VALUE(I,1)*0.25
  I= 46 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 47 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 49 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 50 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 51 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 52 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 55 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 56 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 57 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 62 $ TOLER(  I,1) = VALUE(I,1)*0.40  $  TOLER(  I,2) = VALUE(I,1)*0.40
  I= 63 $ TOLER(  I,1) = VALUE(I,1)*0.90  $  TOLER(  I,2) = VALUE(I,1)*0.90
  I= 64 $ TOLER(  I,1) = 100  $  TOLER(  I,2) = 100 ! Ignored
  I= 67 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 68 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 69 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 70 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 72 $ TOLER(  I,1) = 100  $  TOLER(  I,2) = 100 ! Ignored
  I= 73 $ TOLER(  I,1) = VALUE(I,1)*0.25  $  TOLER(  I,2) = VALUE(I,1)*0.25
  I= 74 $ TOLER(  I,1) = VALUE(I,1)*0.25  $  TOLER(  I,2) = VALUE(I,1)*0.25
  I= 75 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 76 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 77 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 79 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 80 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 81 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 82 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 83 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 85 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 86 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 87 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 88 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 89 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 94 $ TOLER(  I,1) = 100  $  TOLER(  I,2) = 100 ! Ignored
  I= 98 $ TOLER(  I,1) = 100  $  TOLER(  I,2) = 100 ! Ignored
  I=102 $ TOLER(  I,1) = 100  $  TOLER(  I,2) = 100 ! Ignored

!--------------------------------------------------------------------------------------
! 12. Results comparison
!--------------------------------------------------------------------------------------
  COMPARA.MAC

Results

LabelTargetCivilFEMRatioTolerance
'FEL'1 1.228 1.23130.997 0.0614
'FEL'2 1 0.905191.095 0.15
'FEL'3 1 0.707411.293 0.4
'FEL'4 50 59.7120.806 45
'FEL'5 1.619 1.62670.995 0.08095
'FEL'6 1.961 1.97310.994 0.09805
'FEL'7 1.019 1.10130.919 0.2038
'FEL'8 1 0.824481.176 0.3
'FEL'9 1 0.67791.322 0.4
'FEL'10 1 0.805881.194 0.3
'FEL'11 1.439 1.26811.119 0.2158
'FEL'12 1.473 1.48460.992 0.07365
'FEL'13 0.926 0.984960.936 0.1852
'FEL'14 0.776 0.777420.998 0.0388
'FEL'15 1.06 0.841871.206 0.265
'FEL'16 0.978 1.02260.954 0.0489
'FEL'17 1.325 1.211.087 0.1988
'FEL'18 1.892 1.67031.117 0.2838
'FEL'19 0.746 0.910820.779 0.1865
'FEL'20 0.767 0.886570.844 0.1534
'FEL'21 1.038 1.15540.887 0.2076
'FEL'22 1.441 1.35121.062 0.2162
'FEL'23 2.018 1.90661.055 0.3027
'FEL'24 1.98 1.9880.996 0.099
'FEL'25 0.837 0.980460.829 0.1674
'FEL'26 1.128 1.24770.894 0.1692
'FEL'27 1.651 1.591.037 0.08255
'FEL'28 1.997 1.86961.064 0.2995
'FEL'29 4.011 3.55491.114 0.6017
'FEL'30 1.96 1.96730.996 0.098
'BIS'31 1.319 1.31021.007 0.06595
'BIS'32 1.709 1.53061.104 0.3418
'BIS'33 1 1.56260.437 0.9
'BIS'34 50 52.0320.959 45
'BIS'35 1.674 1.65551.011 0.0837
'BIS'36 2.086 2.07561.005 0.1043
'BIS'37 1.494 1.48451.006 0.2241
'BIS'38 1.2 1.28320.931 0.36
'BIS'39 1.986 1.31411.338 0.7944
'BIS'40 1.677 1.19851.285 0.6708
'BIS'41 1.475 1.35721.080 0.2213
'BIS'42 1.705 1.69251.007 0.08525
'BIS'43 1.294 1.29660.998 0.1941
'BIS'44 1.11 1.1550.959 0.1665
'BIS'45 1.276 1.1391.107 0.319
'BIS'46 1.174 1.18170.993 0.1761
'BIS'47 1.4 1.34921.036 0.21
'BIS'48 1.809 1.76141.026 0.09045
'BIS'49 1.101 1.18030.928 0.1651
'BIS'50 1.054 1.08250.973 0.1581
'BIS'51 1.222 1.22660.996 0.1833
'BIS'52 1.545 1.45821.056 0.2318
'BIS'53 1.971 1.97450.998 0.09855
'BIS'54 2.094 2.0951.000 0.1047
'BIS'55 1.1 1.11510.986 0.165
'BIS'56 1.3 1.29541.004 0.195
'BIS'57 1.769 1.67971.051 0.2653
'BIS'58 1.996 1.92061.038 0.0998
'BIS'59 3.641 3.47471.046 0.182
'BIS'60 2.066 2.06760.999 0.1033
'JAN'61 1.107 1.11110.996 0.05535
'JAN'62 1.647 1.12831.315 0.6588
'JAN'63 1 1.33860.661 0.9
'JAN'64 0.001 920.000 100
'JAN'65 1.568 1.58280.991 0.0784
'JAN'66 1.899 1.9160.991 0.09495
'JAN'67 1.495 1.10371.262 0.4485
'JAN'68 1 1.03410.966 0.3
'JAN'69 1 0.97251.028 0.15
'JAN'70 1 1.07090.929 0.3
'JAN'71 1.405 1.4090.997 0.07025
'JAN'72 0.002 1.45690.000 100
'JAN'73 1.285 1.02371.203 0.3212
'JAN'74 1.103 0.923851.162 0.2758
'JAN'75 1.335 0.94611.291 0.4005
'JAN'76 1.271 1.08911.143 0.2542
'JAN'77 1.794 1.34151.252 0.5382
'JAN'78 1.944 1.95190.996 0.0972
'JAN'79 1.065 0.967091.092 0.1598
'JAN'80 1.044 0.947121.093 0.1566
'JAN'81 1.264 1.12951.106 0.2528
'JAN'82 1.703 1.37911.190 0.3406
'JAN'83 2.89 2.10291.272 0.867
'JAN'84 1.945 1.95420.995 0.09725
'JAN'85 1.087 0.986551.092 0.1631
'JAN'86 1.329 1.1921.103 0.2658
'JAN'87 1.864 1.55941.163 0.3728
'JAN'88 2.459 1.91441.222 0.7377
'JAN'89 5 5.30680.939 1.5
'JAN'90 1.93 1.93870.996 0.0965
'JMD'91 1.196 1.19670.999 0.0598
'JMD'92 1.187 1.18741.000 0.05935
'JMD'93 1.464 1.46490.999 0.0732
'JMD'94 0.002 920.000 100
'JMD'95 1.7 1.70031.000 0.085
'JMD'96 2.073 2.07331.000 0.1037
'JMD'97 1.155 1.15570.999 0.05775
'JMD'98 0.027 1.08530.000 100
'JMD'99 1.024 1.02480.999 0.0512
'JMD'100 1.171 1.17121.000 0.05855
'JMD'101 1.493 1.49371.000 0.07465
'JMD'102 1.585 1.58581.000 100
'JMD'103 1.07 1.071.000 0.0535
'JMD'104 0.968 0.968361.000 0.0484
'JMD'105 0.994 0.994221.000 0.0497
'JMD'106 1.186 1.18690.999 0.0593
'JMD'107 1.464 1.46431.000 0.0732
'JMD'108 2.091 2.09161.000 0.1046
'JMD'109 1.009 1.00931.000 0.05045
'JMD'110 0.99 0.989891.000 0.0495
'JMD'111 1.222 1.22211.000 0.0611
'JMD'112 1.494 1.4941.000 0.0747
'JMD'113 2.28 2.28011.000 0.114
'JMD'114 2.089 2.08931.000 0.1045
'JMD'115 1.026 1.02670.999 0.0513
'JMD'116 1.279 1.27921.000 0.06395
'JMD'117 1.677 1.67761.000 0.08385
'JMD'118 2.058 2.0591.000 0.1029
'JMD'119 5.698 5.69821.000 0.2849
'JMD'120 2.069 2.06941.000 0.1035

Contains proprietary and confidential information of Ingeciber, S.A.
