CFVR5151 - Bridge loads

Slab bridge with vehicle loads, surface loads and prestressing cables.

The example is a slab bridge on which vehicle loads are defined.
The bridge has a rectangular cross section 3 x 4.3 made of HA-35 concrete. It has the follow geometry:
Plan View

  • Straight line: From MP 90 to MP 120.
  • Clothoid: From MP 120 (radius = 0) to MP 170 (radius = -200).
Elevation View
  • Straight line: From MP 90 to MP 170 (0% slope).
Families of vehicle loads are defined.
The aim of the example is to verify the vehicle loads.

Element types used in the model: SOLID95

Needed CivilFEM Modules:
Geotechnical Module
Bridges and Civil Non Linearities Module
Advanced Prestressed Concrete Module

The example cannot be launched on an educational license.
KEYWORDS
Bridge Loads


Model Statistics
Number of elements 6042
Number of nodes 26039
Number of civil materials 1
Number of cross sections 0
Number of shell vertices 0

Log file: CFVR5151.DAT


  FINISH
  ~CFCLEAR,,1
  ~CFACTIV,NLBR,Y
  NomFile='CFVR5151'
  /TITLE, %NomFile%, Bridge loads

! -------------------------------------------------------------------------------------
! Initial data
! -------------------------------------------------------------------------------------
  /PREP7
  ~CFCONFG,BRIDGE,PCA,0

! Materials
  ~CFMP,1,LIB,CONCRETE,EHE,HA-35

! Element type
  ET,1,SOLID95

  ! Bridge definition
  ~BRINIP,1,
  ~BRADDPL, 90,120, 0,   0   ! Straight line
  ~BRADDPL,   ,170, 0,-200   ! Clothoid

  ~BRADDEL, 90,170

  ~BRSSLAB,1,TS,1,8.1,13.5,1.35,0.2

  ~BRHL,1,C, -0.675, 3.375,.475,,1
  ~BRHL,1,C, -0.675, 2.025,.475,,1
  ~BRHL,1,C, -0.675, 0.675,.475,,1
  ~BRHL,1,C, -0.675,-0.675,.475,,1
  ~BRHL,1,C, -0.675,-2.025,.475,,1
  ~BRHL,1,C, -0.675,-3.375,.475,,1

  ~BRMVDL,1,2, 4.05
  ~BRMVDL,1,8,-4.05
  ~BRMVDL,1,1, 5.5
  ~BRMVDL,1,9,-5.5

  ~BRSGEN,1,2,1

  ~BRSMDF,1,NAME,,,Support Bridge Section

  ~BRBC,1,ADD,3
  ~BRBC,1,ADD,5
  ~BRBC,1,ADD,7

  ~BRSMDF,2,NAME,,,Midle Bridge Section

  ~BRSDIV,1,SLAB,SIZE,,0.40
  ~BRSDIV,1,SLAB,THICK,,2

  MOPT,QMESH,ALTE

  ini=110.0
  fin=120.0
  step=5
  *DO,I,ini,fin,step
    ~BRDEF,I,2,0.0,0.0,0.00,,  ,0
  *ENDDO

  ini=120.0
  fin=130.0
  step=5
  bank=0 ! %
  *DO,I,ini,fin,step
    ~BRDEF,I,2,0.0,0.0,(I-ini)/(fin-ini)*bank,,  ,0
  *ENDDO
  ~BRDEF,110.0,1,0.0,0.0,0.00,,,1
  ~BRDEF,110.8,2,0.0,0.0,0.00,,,0
  ~BRDEF,fin-0.6,2,0.0,0.0,bank,,  ,1
  ~BRDEF,fin    ,1,0.0,0.0,bank,,  ,1
  ~BRDEF,119.5,2,0.0,0.0,0,,,1
  ~BRDEF,120.0,1,0.0,0.0,0,,,1
  ~BRDEF,120.5,,0.0,0.0,0.00,,,0

  ~BRGEN,,,,1.50,

/VIEW, 1, 0.89, -0.38, 0.25
/ANG,  1, -84.93
EPLOT

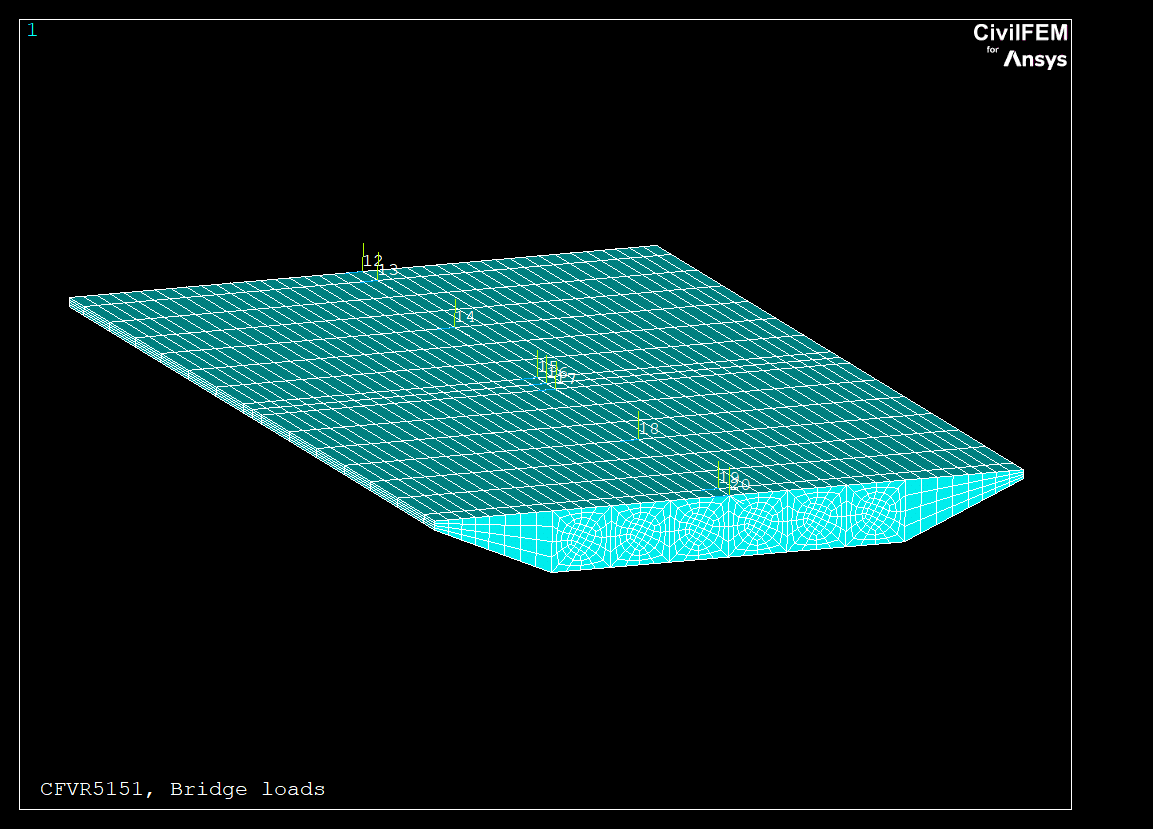

/IMAGE, SAVE, %NomFile%,BMP

! Transfer DOF constraints from KPs to nodes.
  ALLSEL
  DTRAN

  ~BRSKTCH,5

  ! LOADS
  /SOLU
  /sys,del file.s*
  ALLSEL
! Familiy definition.
! The following families will contain all the vehicle steps.
! These steps are incompatible (the vehicle can only be at one location at a time).
  ~BLFDF,1001, INCOMPAT  ! Vertical loads
  ~BLFDF,1002, INCOMPAT  ! Horizontal loads (Breaking, acceleration, etc.)
! The following family will contain all the surface loads steps.
! These steps are compatible.
  ~BLFDF,1011, COMPAT  ! Vertical loads
  ~BLFDF,1012, COMPAT  ! Horizontal loads
! The following family will contain all the cables.
  ~BLFDF,1021, ADD,1,1

! Vehicle number 15
  ~BLVST,15
    ~BLVA, 3, 1.5, 5.0,
    ~BLVB, 2, 2.3
    ~BLVC, 0,-3.0,0,0,3.25,0.5
    ~BLVD, 1,  1, -1e4,-1e4,-5e3
    ~BLVD, 2,  1, -1e4,-1e4,-5e3
  ~BLVEND

  ALLSEL
! Attach the vehicle to the family.
  ~BLVR,1001,1002,15,,,3,0.20,0

! Surface load
  ~BLSST, 1011, 1012
    ~BLSA,5,6.25,3.125,0,-3.125,-6.25
    ~BLSB,-3.5e3,,,0.04,1e2
  ~BLSEND

! Cables
  *DO,II,1,7
    ~BLCBDEL,10+II
    ~BLCBST,10+II
      CSYS,12
      ~BLCBPA,0,-0.15,4.05-(II-1)*1.35,3e5
      CSYS,14
      ~BLCBPA,0,-1.20,4.05-(II-1)*1.35,2.95e5
      CSYS,16
      ~BLCBPA,0,-0.23,4.05-(II-1)*1.35,2.90e5
      CSYS,18
      ~BLCBPA,0,-1.20,4.05-(II-1)*1.35,2.85e5
      CSYS,20
      ~BLCBPA,0,-0.15,4.05-(II-1)*1.35,2.80e5
    ~BLCBEND
  *ENDDO
  ESEL,S,ENAME,,95
  NSLE

  ~BLPL,1021,11,12,13,14,15,16,17
  CSYS,0

! Solve
  ALLSEL
  Node1 = NODE( 30.000,-2.7000,-1.3500)
  Node4 = NODE( 40.000,-0.16667E-01,-1.3500)
  D,Node1,all,all
  D,Node4,all,all
  /SOLU
  SOLVE

!--------------------------------------------------------------------------------------
! DATA CHECK
!--------------------------------------------------------------------------------------
! Data comparison number
  NComp    = 26
  NComp_ch = 0

! Marix dim.
  *DIM,LABEL,CHAR,Ncomp,1
  *DIM,LABEL_CH,CHAR,Ncomp_ch,1
  *DIM,VALUE,,Ncomp,3
  *DIM,VALUE_CH,CHAR,Ncomp_ch,3
  *DIM,TOLER,,Ncomp,2

! Labels
!--------------------------------------------------------------------------------------
  LABEL( 1)  = 'N_Vehic'
  LABEL( 2)  = 'D_'
  LABEL( 3)  = 'Q(2,3)'
  LABEL( 4)  = 'CSP(2)'
  LABEL( 5)  = 'F_Type'
  LABEL( 6)  = 'F_Stts'
  LABEL( 7)  = 'D'
  LABEL( 8)  = 'Not used'
  LABEL( 9)  = 'SumFZ'
  LABEL(10)  = 'D'
  LABEL(11)  = 'SumFX'
  LABEL(12)  = 'F_Type'
  LABEL(13)  = 'F_Stts'
  LABEL(14)  = 'D'
  LABEL(15)  = 'PressZ'
  LABEL(16)  = 'D'
  LABEL(17)  = 'PressX'
  LABEL(18)  = 'PressY'
  LABEL(19)  = 'NCables'
  LABEL(20)  = 'NPTS'
  LABEL(21)  = 'LS'
  LABEL(22)  = 'Tension'
  LABEL(23)  = 'F_Type'
  LABEL(24)  = 'F_Stts'
  LABEL(25)  = 'D'
  LABEL(26)  = 'UZ'

! Correct data, obtained data
!--------------------------------------------------------------------------------------
/SOLU
! Vehicles.
! LS 1 to 16.
  VALUE( 1,1) = 1                $  ~CFGET,value( 1,2),BRIDGE,,VEHICLE,NUMBER
  VALUE( 2,1) = -3.0             $  ~CFGET,value( 2,2),BRIDGE,,VEHICLE,D,,15
  VALUE( 3,1) = -5.0E3           $  ~CFGET,value( 3,2),BRIDGE,,VEHICLE,Q,,15,2,3
  VALUE( 4,1) = 5.0              $  ~CFGET,value( 4,2),BRIDGE,,VEHICLE,CSP,,15,2
  VALUE( 5,1) = 3                $  ~CFGET,value( 5,2),BRIDGE,,FAMILY,TYPE,,1002
  VALUE( 6,1) = 8                $  ~CFGET,value( 6,2),BRIDGE,,FAMILY,NSTATES,,1001
  Node1 = NODE( 30.000,-2.7000,-1.3500)
  Node2 = NODE( 22.900, 4.5333, 0.0000)
  Node3 = NODE( 35.003, 2.6979, 0.0000)
  fdele,all,all
  sfedele,all,all,all
  ddele,all,all
  lsread,3
  VALUE( 7,1) = 0.0              $  *GET,value( 7,2), NODE,Node1,D,UZ
  VALUE( 8,1) = 0.0              $  VALUE( 8,2) = 0.0   ! Not used
  VALUE( 9,1) = -5e4
  VALUE( 9,2) = 0.0
  *GET,N_Nodes,NODE,,NUM,MAX
  *DO,II,1,N_Nodes
    *GET,val_aux, NODE,II,NSELL
    *IF,val_aux,EQ,1,THEN
      *GET,val_aux, NODE,II,F,FZ
      VALUE( 9,2) = VALUE( 9,2) + val_aux
    *ENDIF
  *ENDDO
  fdele,all,all
  sfedele,all,all,all
  ddele,all,all
  lsread,15
  VALUE(10,1) = 0.0              $  *GET,value(10,2), NODE,Node1,D,UZ
  VALUE(11,1) = -8e3
  VALUE(11,2) = 0.0
  *DO,II,1,N_Nodes
    *GET,val_aux, NODE,II,NSELL
    *IF,val_aux,EQ,1,THEN
      *GET,val_aux, NODE,II,F,FX
      VALUE(11,2) = VALUE(11,2) + val_aux
    *ENDIF
  *ENDDO

! Surface loads.
! LS 17 to 48.
  VALUE(12,1) = 4                $  ~CFGET,value(12,2),BRIDGE,,FAMILY,TYPE,,1012
  VALUE(13,1) = 16               $  ~CFGET,value(13,2),BRIDGE,,FAMILY,NSTATES,,1011
  Node1 = NODE( 30.000,-2.7000,-1.3500)
  Node2 = NODE( 27.250, 1.3500, 0.0000)
  Node3 = NODE( 37.193,-2.3687, 0.0000)
  fdele,all,all
  sfedele,all,all,all
  ddele,all,all
  lsread,26
  NSEL,S,,,Node2
  ESLN
  ESEL,R,ENAME,,154
  Elem1 = ELNEXT(0)
  ESEL,ALL
  NSEL,ALL
  VALUE(14,1) = 0.0              $  *GET,value(14,2), NODE,Node1,D,UZ
  VALUE(15,1) = -3.5e3           $  *GET,value(15,2), ELEM,Elem1,PRES,1
  fdele,all,all
  sfedele,all,all,all
  ddele,all,all
  lsread,40
  NSEL,S,,,Node3
  ESLN
  ESEL,R,ENAME,,154
  Elem2 = ELNEXT(0)
  ESEL,ALL
  NSEL,ALL
  VALUE(16,1) = 0.0              $  *GET,value(16,2), NODE,Node1,D,UZ
  VALUE(17,1) = -140             $  *GET,value(17,2), ELEM,Elem2,PRES,2
  VALUE(18,1) = 0.4083           $  *GET,value(18,2), ELEM,Elem2,PRES,3

! Cables.
! LS 49 to 55.
  VALUE(19,1) = 7                $  ~CFGET,value(19,2),BRIDGE,,CABLE,NUMBER
  VALUE(20,1) = 5                $  ~CFGET,value(20,2),BRIDGE,,CABLE,NPTS,,12
  VALUE(21,1) = 50               $  ~CFGET,value(21,2),BRIDGE,,CABLE,LS,,12
  VALUE(22,1) = 2.85e5           $  ~CFGET,value(22,2),BRIDGE,,CABLE,TENSION,,15,4
  VALUE(23,1) = 1                $  ~CFGET,value(23,2),BRIDGE,,FAMILY,TYPE,,1021
  VALUE(24,1) = 7                $  ~CFGET,value(24,2),BRIDGE,,FAMILY,NSTATES,,1021
  Node4 = NODE( 40.000,-0.16667E-01,-1.3500)
  Node2 = NODE( 25.000, 6.7500,-0.20000)
  VALUE(25,1) = 0.0              $  *GET,value(25,2), NODE,Node4,D,UZ
  ! Data from last solve (Cable 17)
  /POST1
  ~CFSET,0,1,LAST,
  VALUE(26,1) = 5.1E-05          $  value(26,2) = UZ(Node2)

! Warning and error tolerances
  *DO,I,1,NComp
    TOLER(I,1) = 1E-8  $  TOLER(I,2) = 1E-8
  *ENDDO
  TOLER(  8,1) = 1E-3  $  TOLER(  8,2) = 1E-3
  TOLER(  9,1) = 1E-2  $  TOLER(  9,2) = 1E-2
  TOLER( 11,1) = 1E-0  $  TOLER( 11,2) = 1E-0
  TOLER( 17,1) = 1E-1  $  TOLER( 17,2) = 1E-1
  TOLER( 18,1) = 1E-2  $  TOLER( 18,2) = 1E-2
  TOLER( 26,1) = 1E-5  $  TOLER( 26,2) = 1E-5

!--------------------------------------------------------------------------------------
! Results comparison
!--------------------------------------------------------------------------------------
  COMPARA.MAC

Results

LabelTargetCivilFEMRatioTolerance
N_Vehic 1 11.000 1e-008
D_ -3 -31.000 1e-008
Q(2,3) -5000 -50001.000 1e-008
CSP(2) 5 51.000 1e-008
F_Type 3 31.000 1e-008
F_Stts 8 81.000 1e-008
D 0 00.000 1e-008
Not used 0 00.000 0.001
SumFZ -50000 -500001.000 0.01
D 0 00.000 1e-008
SumFX -8000 -80001.000 1
F_Type 4 41.000 1e-008
F_Stts 16 161.000 1e-008
D 0 00.000 1e-008
PressZ -3500 -35001.000 1e-008
D 0 00.000 1e-008
PressX -140 -1401.000 0.1
PressY 0.4083 0.408331.000 0.01
NCables 7 71.000 1e-008
NPTS 5 51.000 1e-008
LS 50 501.000 1e-008
Tension 2.85e+005 2.85e+0051.000 1e-008
F_Type 1 11.000 1e-008
F_Stts 7 71.000 1e-008
D 0 00.000 1e-008
UZ 5.1e-0055.0255e-0051.015 1e-005
