CFVR3204 - Slope stability with water pressure and seism

Slope stability analysis, with water pressure, an impermeable layer and seismic acceleration.

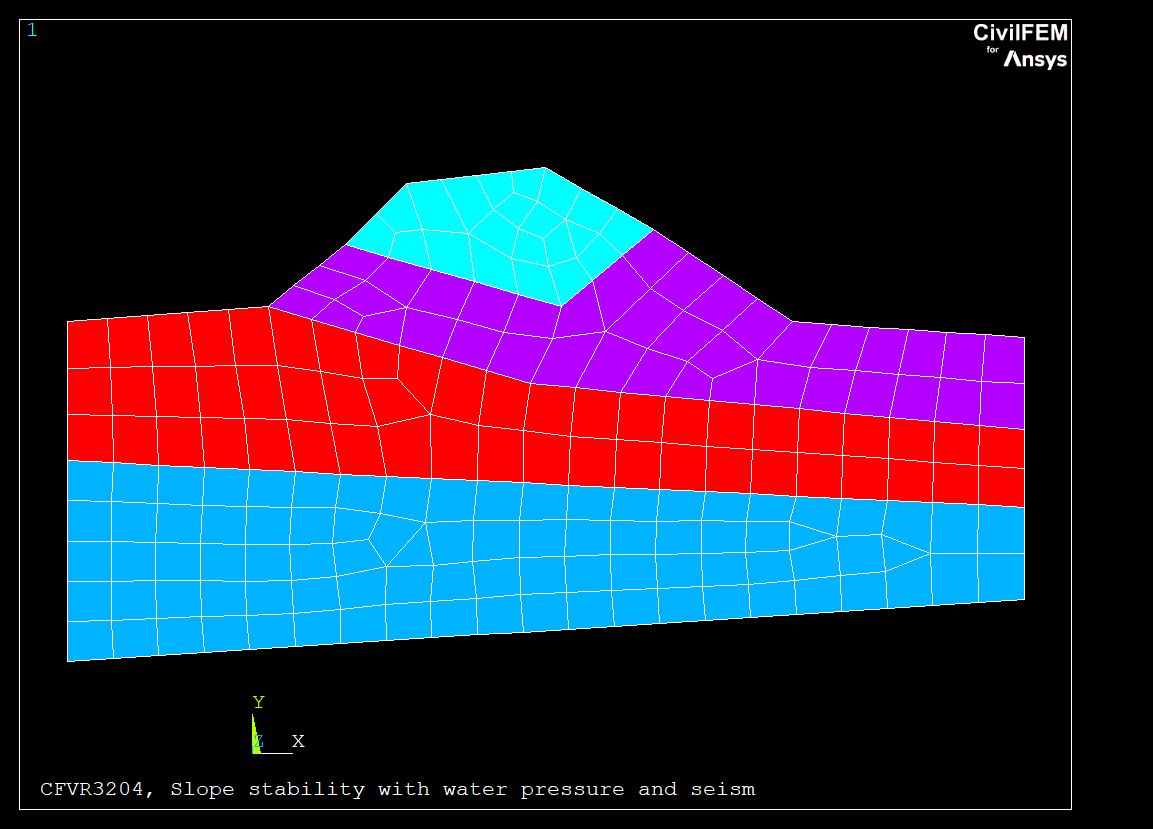

A plane model as shown in the figure is used to check the slope stability analysis. Fellenius, Bishop, Janbu and Modified Janbu methods are used.
The model is made off four layers of materials with the following properties (from top to bottom):

  • Specific weight 1 = 12600 N/m2; Porosity 1 = 0.10
  • Specific weight 2 = 14400 N/m2
  • Specific weight 3 = 11200 N/m2; Porosity 3 = 0.40
  • Specific weight 4 = 9000 N/m2; Porosity 4 = 0.10
The terrain has a water table defined as a polygonal line. The second layer is considered impermeable, no water pore pressure will act on it (RUSI=0).
The actions on the structure are self weight and a horizontal acceleration due to seismic actions of 0.30g.

Element types used in the model: PLANE82

Needed CivilFEM Modules:
Geotechnical Module
Bridges and Civil Non Linearities Module
Advanced Prestressed Concrete Module

The example cannot be launched on an educational license.
KEYWORDS
Geotechnics
Slope Stability


Model Statistics
Number of elements 197
Number of nodes 650
Number of civil materials 4
Number of cross sections 0
Number of shell vertices 0

Log file: CFVR3204.DAT


  FINISH
  ~CFCLEAR,,1
  ~CFACTIV,GETC,Y
  NomFile='CFVR3204'
  /TITLE, %NomFile%, Slope stability with water pressure and seism

! --------------------------------------------------
! 1. Initial data
! --------------------------------------------------
! CivilFEM SETUP
  ~UNITS,SI

/PREP7
! 2. Materials
! --------------------------------------------------
~CFMP,1,LIB,SOIL,,OH
~CFMP,2,LIB,SOIL,,CH
~CFMP,3,LIB,SOIL,,SC
~CFMP,4,LIB,SOIL,,PH
~CFMP,1,Soil,GAMD,,12600 ! OH
~CFMP,2,Soil,GAMD,,14400 ! CH
~CFMP,3,Soil,GAMD,,11200 ! SC
~CFMP,4,Soil,GAMD,,9000  ! PH
*DO,II,1,4
  ~CFMP,II,SOIL,RUSI,,1
*ENDDO
~CFMP,2,SOIL,RUSI,,0

! 3. Elements
! --------------------------------------------------
ET,1,PLANE82

! 4. Model
! --------------------------------------------------
K, 1,-12,28
K, 2,  1,29
K, 3, 10,37
K, 4, 19,38
K, 5, 35,28
K, 6, 50,27
K, 7,  6,33
K, 8, 20,29
K, 9, 26,34
K,10, 18,24
K,11, 50,21
K,12,-12,19
K,13, 50,16
K,14,-12, 6
K,15, 50,10

A,7,8,9,4,3
A,2,7,8,9,5,6,11,10
A,1,2,10,11,13,12
A,15,13,12,14

AESIZE,ALL,3

*DO,I,1,4
  MAT,I
  AMESH,I
*ENDDO
/NUMBER,1
/PNUM,MAT,1
EPLOT
/IMAGE, SAVE, %NomFile%,BMP

! 5. Capturing Model
! --------------------------------------------------
pp1=node(kx(1),ky(1),kz(1))
pp2=node(kx(6),ky(6),kz(6))
pp3=node(kx(5),ky(5),kz(5))
~SLPIN,PP1,PP2,PP3

! 6. Circles Centres Grid Input
! --------------------------------------------------
K,16,21,41
K,17,35,32
K,18,42,43
k,19,28,52
~SLPCIRK,16,19,17,5,6

! 7. Tangents Input
! --------------------------------------------------
K,20,34,27
K,21,34,11
K,22, 0,11
K,23,18,37
~SLPTANK,20,23,22,21,10

! 8. Hydrostatic Pressure
! --------------------------------------------------
~SLPPWP,5,0,-12,27, 01,27, 16,35, 41,25, 50,25

! 9. Data Check
! --------------------------------------------------
! Data comparison number
  NComp    = 30*4
  NComp_ch = 0

! Marix dim.
  *DIM,LABEL,CHAR,Ncomp,1
  *DIM,LABEL_CH,CHAR,Ncomp_ch,1
  *DIM,VALUE,,Ncomp,3
  *DIM,VALUE_CH,CHAR,Ncomp_ch,3
  *DIM,TOLER,,Ncomp,2

! 10. Labels, Correct data, obtained data
! --------------------------------------------------
*DIM,AUXVECT,ARRAY,10
*DIM,AUXVEC2,ARRAY,10
/POST1
~SLPSOL,0,,0.3 ! Fellenius
*DO,JJ,1,30
  LABEL(JJ) = 'FEL' %JJ%
  *DO,II,1,10
    ~CFGET,AUXVECT(II),SLOPE,,RES,F,,2,(JJ-1)*10 + II
  *ENDDO
  *VOPER,AUXVEC2,AUXVECT,MULT,AUXVECT
  *VFUN,AUXVEC2,SQRT,AUXVEC2
  *VFUN,AUXVEC2,ASORT,AUXVEC2
  VALUE(JJ,2) = AUXVEC2(1)
*ENDDO

VALUE(  1,1) =  1.000
VALUE(  2,1) =  0.600
VALUE(  3,1) =  0.400
VALUE(  4,1) =  1.165
VALUE(  5,1) =  1.619
VALUE(  6,1) =  1.961
VALUE(  7,1) =  0.672
VALUE(  8,1) =  0.500
VALUE(  9,1) =  0.500
VALUE( 10,1) =  0.500
VALUE( 11,1) =  1.130
VALUE( 12,1) =  1.473
VALUE( 13,1) =  0.609
VALUE( 14,1) =  0.526
VALUE( 15,1) =  0.701
VALUE( 16,1) =  0.643
VALUE( 17,1) =  0.870
VALUE( 18,1) =  1.329
VALUE( 19,1) =  0.523
VALUE( 20,1) =  0.518
VALUE( 21,1) =  0.681
VALUE( 22,1) =  0.904
VALUE( 23,1) =  1.107
VALUE( 24,1) =  1.453
VALUE( 25,1) =  0.554
VALUE( 26,1) =  0.729
VALUE( 27,1) =  0.871
VALUE( 28,1) =  0.972
VALUE( 29,1) =  1.213
VALUE( 30,1) =  1.960

~SLPSOL,1,,0.3 ! Bishop
*DO,JJ,1,30
  LABEL(JJ+30) = 'BIS' %JJ+30%
  *DO,II,1,10
    ~CFGET,AUXVECT(II),SLOPE,,RES,F,,2,(JJ-1)*10 + II
  *ENDDO
  *VOPER,AUXVEC2,AUXVECT,MULT,AUXVECT
  *VFUN,AUXVEC2,SQRT,AUXVEC2
  *VFUN,AUXVEC2,ASORT,AUXVEC2
  VALUE(JJ+30,2) = AUXVEC2(1)
*ENDDO

VALUE( 31,1) =  1.319
VALUE( 32,1) =  1.282
VALUE( 33,1) =  1.748
VALUE( 34,1) =  1.687
VALUE( 35,1) =  1.674
VALUE( 36,1) =  2.086
VALUE( 37,1) =  0.991
VALUE( 38,1) =  1.082
VALUE( 39,1) =  1.080
VALUE( 40,1) =  1.126
VALUE( 41,1) =  1.283
VALUE( 42,1) =  1.705
VALUE( 43,1) =  0.885
VALUE( 44,1) =  0.829
VALUE( 45,1) =  0.928
VALUE( 46,1) =  0.920
VALUE( 47,1) =  1.124
VALUE( 48,1) =  1.600
VALUE( 49,1) =  0.823
VALUE( 50,1) =  0.793
VALUE( 51,1) =  0.887
VALUE( 52,1) =  1.063
VALUE( 53,1) =  1.290
VALUE( 54,1) =  1.693
VALUE( 55,1) =  0.786
VALUE( 56,1) =  0.891
VALUE( 57,1) =  0.914
VALUE( 58,1) =  1.092
VALUE( 59,1) =  1.341
VALUE( 60,1) =  2.066

~SLPSOL,2,,0.3 ! Janbu
*DO,JJ,1,30
  LABEL(JJ+60) = 'JAN' %JJ+60%
  *DO,II,1,10
    ~CFGET,AUXVECT(II),SLOPE,,RES,F,,2,(JJ-1)*10 + II
  *ENDDO
  *VOPER,AUXVEC2,AUXVECT,MULT,AUXVECT
  *VFUN,AUXVEC2,SQRT,AUXVEC2
  *VFUN,AUXVEC2,ASORT,AUXVEC2
  VALUE(JJ+60,2) = AUXVEC2(1)
*ENDDO

VALUE( 61,1) =  1.107
VALUE( 62,1) =  1.048
VALUE( 63,1) =  1.000
VALUE( 64,1) =  1.609
VALUE( 65,1) =  1.568
VALUE( 66,1) =  1.899
VALUE( 67,1) =  0.809
VALUE( 68,1) =  0.870
VALUE( 69,1) =  0.851
VALUE( 70,1) =  0.924
VALUE( 71,1) =  1.110
VALUE( 72,1) =  1.443
VALUE( 73,1) =  0.746
VALUE( 74,1) =  0.707
VALUE( 75,1) =  0.778
VALUE( 76,1) =  0.775
VALUE( 77,1) =  0.936
VALUE( 78,1) =  1.334
VALUE( 79,1) =  0.714
VALUE( 80,1) =  0.695
VALUE( 81,1) =  0.764
VALUE( 82,1) =  0.905
VALUE( 83,1) =  1.098
VALUE( 84,1) =  1.444
VALUE( 85,1) =  0.694
VALUE( 86,1) =  0.782
VALUE( 87,1) =  0.829
VALUE( 88,1) =  0.949
VALUE( 89,1) =  1.204
VALUE( 90,1) =  1.930

~SLPSOL,3,,0.3! Modified Janbu
*DO,JJ,1,30
  LABEL(JJ+90) = 'JMD' %JJ+90%
  *DO,II,1,10
    ~CFGET,AUXVECT(II),SLOPE,,RES,F,,2,(JJ-1)*10 + II
  *ENDDO
  *VOPER,AUXVEC2,AUXVECT,MULT,AUXVECT
  *VFUN,AUXVEC2,SQRT,AUXVEC2
  *VFUN,AUXVEC2,ASORT,AUXVEC2
  VALUE(JJ+90,2) = AUXVEC2(1)
*ENDDO

VALUE( 91,1) =  0.96
VALUE( 92,1) =  0.86
VALUE( 93,1) =  0.98
VALUE( 94,1) =  1.74
VALUE( 95,1) =  1.70
VALUE( 96,1) =  2.07
VALUE( 97,1) =  0.85
VALUE( 98,1) =  0.78
VALUE( 99,1) =  0.55
VALUE(100,1) =  0.90
VALUE(101,1) =  1.22
VALUE(102,1) =  1.50
VALUE(103,1) =  0.78
VALUE(104,1) =  0.74
VALUE(105,1) =  0.85
VALUE(106,1) =  0.85
VALUE(107,1) =  1.03
VALUE(108,1) =  1.46
VALUE(109,1) =  0.75
VALUE(110,1) =  0.72
VALUE(111,1) =  0.83
VALUE(112,1) =  0.98
VALUE(113,1) =  1.20
VALUE(114,1) =  1.56
VALUE(115,1) =  0.72
VALUE(116,1) =  0.84
VALUE(117,1) =  0.88
VALUE(118,1) =  1.03
VALUE(119,1) =  1.30
VALUE(120,1) =  2.07

! Warning and error tolerances
  *DO,II,1,NComp
    TOLER(II,1) = VALUE(II,1)*0.03
    TOLER(II,2) = VALUE(II,1)*0.03
  *ENDDO
! Known exceptions
  I=  1 $ TOLER(  I,1) = VALUE(I,1)*0.40  $  TOLER(  I,2) = VALUE(I,1)*0.40
  I=  2 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I=  3 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I=  4 $ TOLER(  I,1) = VALUE(I,1)*0.40  $  TOLER(  I,2) = VALUE(I,1)*0.40
  I=  7 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I=  8 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I=  9 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 10 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 12 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 13 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 14 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 15 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 31 $ TOLER(  I,1) = VALUE(I,1)*0.80  $  TOLER(  I,2) = VALUE(I,1)*0.80
  I= 32 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 33 $ TOLER(  I,1) = VALUE(I,1)*0.40  $  TOLER(  I,2) = VALUE(I,1)*0.40
  I= 37 $ TOLER(  I,1) = VALUE(I,1)*0.25  $  TOLER(  I,2) = VALUE(I,1)*0.25
  I= 38 $ TOLER(  I,1) = VALUE(I,1)*0.40  $  TOLER(  I,2) = VALUE(I,1)*0.40
  I= 39 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 43 $ TOLER(  I,1) = VALUE(I,1)*0.35  $  TOLER(  I,2) = VALUE(I,1)*0.35
  I= 44 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 45 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 46 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 47 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 49 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 50 $ TOLER(  I,1) = VALUE(I,1)*0.35  $  TOLER(  I,2) = VALUE(I,1)*0.35
  I= 51 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 54 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 55 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 56 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 61 $ TOLER(  I,1) = VALUE(I,1)*0.25  $  TOLER(  I,2) = VALUE(I,1)*0.25
  I= 62 $ TOLER(  I,1) = VALUE(I,1)*0.25  $  TOLER(  I,2) = VALUE(I,1)*0.25
  I= 63 $ TOLER(  I,1) = VALUE(I,1)*0.30  $  TOLER(  I,2) = VALUE(I,1)*0.30
  I= 67 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 68 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 69 $ TOLER(  I,1) = VALUE(I,1)*0.40  $  TOLER(  I,2) = VALUE(I,1)*0.40
  I= 70 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 72 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 73 $ TOLER(  I,1) = VALUE(I,1)*0.40  $  TOLER(  I,2) = VALUE(I,1)*0.40
  I= 74 $ TOLER(  I,1) = VALUE(I,1)*0.20  $  TOLER(  I,2) = VALUE(I,1)*0.20
  I= 76 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 79 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 80 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 82 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 88 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 92 $ TOLER(  I,1) = VALUE(I,1)*0.80  $  TOLER(  I,2) = VALUE(I,1)*0.80
  I= 93 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 98 $ TOLER(  I,1) = VALUE(I,1)*0.80  $  TOLER(  I,2) = VALUE(I,1)*0.80
  I= 99 $ TOLER(  I,1) = VALUE(I,1)*0.65  $  TOLER(  I,2) = VALUE(I,1)*0.65
  I= 104 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 105 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 106 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 107 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 111 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 112 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15
  I= 116 $ TOLER(  I,1) = VALUE(I,1)*0.15  $  TOLER(  I,2) = VALUE(I,1)*0.15

! 11. Results comparison
! --------------------------------------------------
  COMPARA.MAC

Results

LabelTargetCivilFEMRatioTolerance
'FEL'1 1 0.677391.323 0.4
'FEL'2 0.6 0.509211.151 0.18
'FEL'3 0.4 0.412060.970 0.12
'FEL'4 1.165 1.62120.609 0.466
'FEL'5 1.619 1.62670.995 0.04857
'FEL'6 1.961 1.97310.994 0.05883
'FEL'7 0.672 0.599021.109 0.2016
'FEL'8 0.5 0.477961.044 0.15
'FEL'9 0.5 0.408541.183 0.15
'FEL'10 0.5 0.527930.944 0.15
'FEL'11 1.13 1.14340.988 0.0339
'FEL'12 1.473 1.38751.058 0.221
'FEL'13 0.609 0.555811.087 0.09135
'FEL'14 0.526 0.464661.117 0.1052
'FEL'15 0.701 0.506191.278 0.2103
'FEL'16 0.643 0.646880.994 0.01929
'FEL'17 0.87 0.878580.990 0.0261
'FEL'18 1.329 1.33790.993 0.03987
'FEL'19 0.523 0.530920.985 0.01569
'FEL'20 0.518 0.524770.987 0.01554
'FEL'21 0.681 0.686350.992 0.02043
'FEL'22 0.904 0.908770.995 0.02712
'FEL'23 1.107 1.11150.996 0.03321
'FEL'24 1.453 1.45790.997 0.04359
'FEL'25 0.554 0.561740.986 0.01662
'FEL'26 0.729 0.733920.993 0.02187
'FEL'27 0.871 0.871181.000 0.02613
'FEL'28 0.972 0.974590.997 0.02916
'FEL'29 1.213 1.21670.997 0.03639
'FEL'30 1.96 1.96730.996 0.0588
'BIS'31 1.319 1.31021.007 1.055
'BIS'32 1.282 1.27531.005 0.1923
'BIS'33 1.748 1.21751.304 0.6992
'BIS'34 1.687 1.66641.012 0.05061
'BIS'35 1.674 1.65551.011 0.05022
'BIS'36 2.086 2.07561.005 0.06258
'BIS'37 0.991 1.15530.834 0.2478
'BIS'38 1.082 1.08640.996 0.4328
'BIS'39 1.08 1.03531.041 0.216
'BIS'40 1.126 1.10811.016 0.03378
'BIS'41 1.283 1.26371.015 0.03849
'BIS'42 1.705 1.67641.017 0.05115
'BIS'43 0.885 1.02880.838 0.3098
'BIS'44 0.829 0.990040.806 0.1658
'BIS'45 0.928 0.944350.982 0.1392
'BIS'46 0.92 0.997130.916 0.138
'BIS'47 1.124 1.12371.000 0.1686
'BIS'48 1.6 1.58881.007 0.048
'BIS'49 0.823 0.932790.867 0.1235
'BIS'50 0.793 0.924450.834 0.2776
'BIS'51 0.887 0.89640.989 0.1331
'BIS'52 1.063 1.05421.008 0.03189
'BIS'53 1.29 1.27971.008 0.0387
'BIS'54 1.693 1.63121.037 0.254
'BIS'55 0.786 0.87170.891 0.1179
'BIS'56 0.891 0.888251.003 0.1336
'BIS'57 0.914 0.907331.007 0.02742
'BIS'58 1.092 1.08511.006 0.03276
'BIS'59 1.341 1.33511.004 0.04023
'BIS'60 2.066 2.06760.999 0.06198
'JAN'61 1.107 0.919151.170 0.2768
'JAN'62 1.048 0.955861.088 0.262
'JAN'63 1 0.894131.106 0.3
'JAN'64 1.609 1.6210.993 0.04827
'JAN'65 1.568 1.58280.991 0.04704
'JAN'66 1.899 1.9160.991 0.05697
'JAN'67 0.809 0.814440.993 0.1214
'JAN'68 0.87 0.870540.999 0.1305
'JAN'69 0.851 0.824311.031 0.3404
'JAN'70 0.924 0.820251.112 0.1386
'JAN'71 1.11 1.13030.982 0.0333
'JAN'72 1.443 1.37551.047 0.2165
'JAN'73 0.746 0.749430.995 0.2984
'JAN'74 0.707 0.712150.993 0.1414
'JAN'75 0.778 0.787890.987 0.02334
'JAN'76 0.775 0.784250.988 0.1163
'JAN'77 0.936 0.945070.990 0.02808
'JAN'78 1.334 1.33840.997 0.04002
'JAN'79 0.714 0.715940.997 0.1071
'JAN'80 0.695 0.693671.002 0.1043
'JAN'81 0.764 0.769790.992 0.02292
'JAN'82 0.905 0.908830.996 0.1358
'JAN'83 1.098 1.1040.995 0.03294
'JAN'84 1.444 1.44660.998 0.04332
'JAN'85 0.694 0.69950.992 0.02082
'JAN'86 0.782 0.787740.993 0.02346
'JAN'87 0.829 0.830040.999 0.02487
'JAN'88 0.949 0.954490.994 0.1424
'JAN'89 1.204 1.2110.994 0.03612
'JAN'90 1.93 1.93870.996 0.0579
'JMD'91 0.96 0.963430.996 0.0288
'JMD'92 0.86 1.040.791 0.688
'JMD'93 0.98 0.978491.002 0.147
'JMD'94 1.74 1.74220.999 0.0522
'JMD'95 1.7 1.70031.000 0.051
'JMD'96 2.07 2.07330.998 0.0621
'JMD'97 0.85 0.85170.998 0.0255
'JMD'98 0.78 0.942910.791 0.624
'JMD'99 0.55 0.898630.366 0.3575
'JMD'100 0.9 0.897051.003 0.027
'JMD'101 1.22 1.22480.996 0.0366
'JMD'102 1.5 1.50450.997 0.045
'JMD'103 0.78 0.782240.997 0.0234
'JMD'104 0.74 0.745710.992 0.111
'JMD'105 0.85 0.855440.994 0.1275
'JMD'106 0.85 0.854670.995 0.1275
'JMD'107 1.03 1.03160.999 0.1545
'JMD'108 1.46 1.45841.001 0.0438
'JMD'109 0.75 0.74611.005 0.0225
'JMD'110 0.72 0.724990.993 0.0216
'JMD'111 0.83 0.832840.997 0.1245
'JMD'112 0.98 0.984560.995 0.147
'JMD'113 1.2 1.1971.002 0.036
'JMD'114 1.56 1.56240.999 0.0468
'JMD'115 0.72 0.727980.989 0.0216
'JMD'116 0.84 0.845410.994 0.126
'JMD'117 0.88 0.876061.004 0.0264
'JMD'118 1.03 1.02651.003 0.0309
'JMD'119 1.3 1.30031.000 0.039
'JMD'120 2.07 2.06941.000 0.0621

Contains proprietary and confidential information of Ingeciber, S.A.
