CFVR3901 - 4 node 2D laplace element test

Test 4 node 2D Laplace elements (PLANE55)

This example test the thermal properties of a 4 node 2D PLANE55 model.

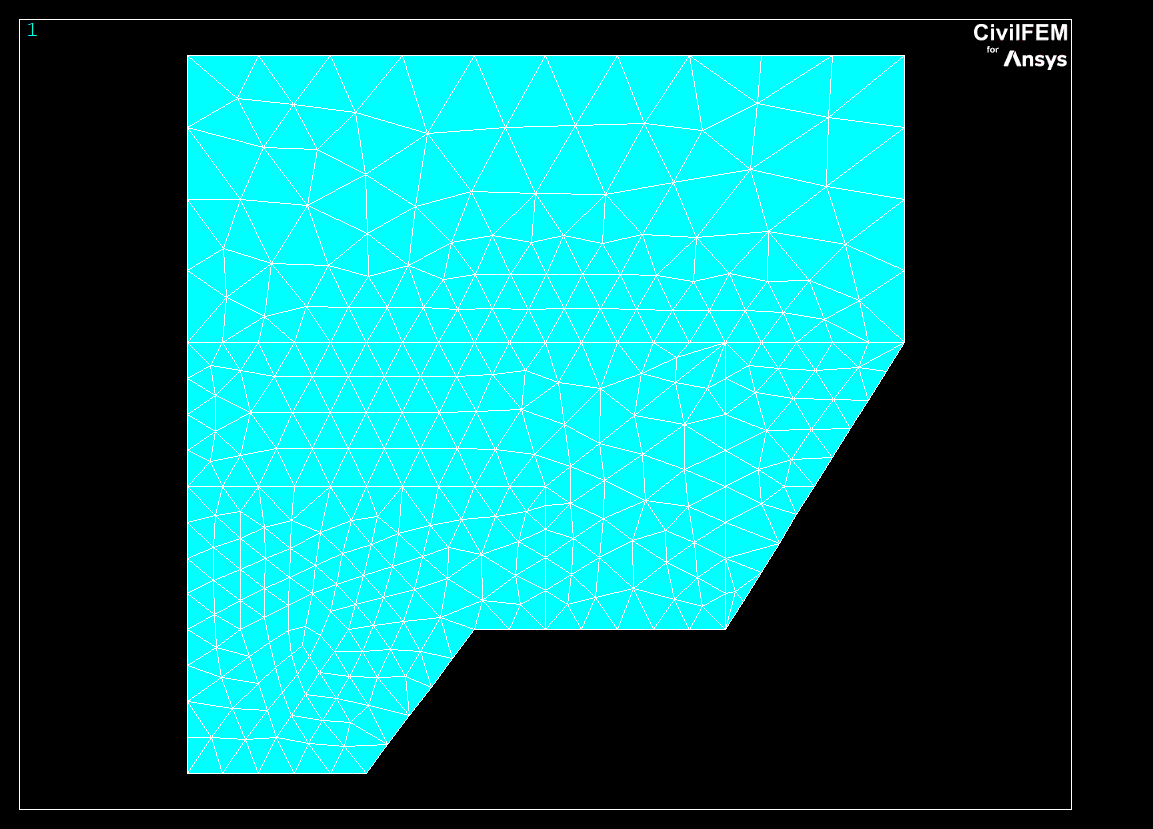

The model consists on an irregular hepthagon, same as the one on the following picture.
The example is launched with ANSYS and with CivilFEM separately; it compares ANSYS results with the ~LPSOLVE command.
ANSYS uses a thermal laplace ecuation model, and CivilFEM solves it as a Seepage analysis.

Element types used in the model: PLANE55

Needed CivilFEM Modules:
Geotechnical Module
Bridges and Civil Non Linearities Module
Advanced Prestressed Concrete Module

The example cannot be launched on an educational license.

KEYWORDS

Material Models

Materials

Model Statistics
Number of elements	567
Number of nodes	321
Number of civil materials	2
Number of cross sections	0
Number of shell vertices	0

Log file: CFVR3901.DAT

  FINISH
  ~CFCLEAR,,1
  NomFile='CFVR3901'
  /TITLE, %NomFile%, 4 node 2D Laplace element test

!--------------------------------------------------------------------------------------
! MODEL WITH ANSYS (thermal)
!--------------------------------------------------------------------------------------
/prep7
et,1,plane55

mp,kxx,1,10
mp,kyy,1,20
mp,kxx,2,2
mp,kyy,2,6

! Area 1

x_off = 5
y_off = 5

L1 = x_off+5
L2 = L1+3
L3 = L2+2
H1 = y_off+4
H2 = H1+4

k,,x_off,y_off
k,,L1,y_off
k,,L2,H1
k,,L3,H1
k,,L3,H2
k,,x_off,H2

l,1,2
*repeat,5,1,1
l,6,1

al,all

! Area 2

k,,x_off+2.5,y_off+1
k,,x_off+4.5,y_off+4
k,,x_off+3.5,y_off+5
k,,x_off+1.5,y_off+4

l,7,8
l,8,9
l,9,10
l,10,7

al,7,8,9,10

asba,1,2,,,keep

H3 = y_off+12
H4 = y_off+20
L4 = x_off+15
L5 = x_off+20

k,,x_off,H3
k,,L4,H3
k,,L4,H1

k,,x_off,H4
k,,L5,H4
k,,L5,H3

A,6,11,12,5
A,5,4,13,12
A,11,14,15,16,12,11
A,13,16,12,13

lesize,13,,,5,0.5
lesize,4,,,5,0.5

! Area 2 con cuadr
esize,0.8
mat,1
amesh,2
mshape,1
esize,1
mat,1
amesh,3
mat,2
amesh,1
mat,1
amesh,4
amesh,6
esize,2
mat,2
amesh,5
/solu

dl,16,,temp,120
dl,20,,temp,30
dl,6,,temp,50
dl,2,,temp,80

SOLVE
/post1
SET,1

! Results

NNUM  = NDINQR(0,12)
ELNUM = ELMIQR(0,12)
*DIM,H_ANSYS,,NNUM
*DIM,TGX_ANSYS,,NNUM
*DIM,TGY_ANSYS,,NNUM
*DIM,TFX_ANSYS,,NNUM
*DIM,TFY_ANSYS,,NNUM
*VGET,H_ANSYS,NODE,1,TEMP
*VGET,TFX_ANSYS,NODE,1,TF,X
*VGET,TFY_ANSYS,NODE,1,TF,Y
*VGET,TGX_ANSYS,NODE,1,TG,X
*VGET,TGY_ANSYS,NODE,1,TG,Y

PARSAV,ALL,E4_ANSYS


!--------------------------------------------------------------------------------------
! MODEL WITH CIVILFEM
!--------------------------------------------------------------------------------------

finish
~cfclear,,1

~CFACTIV,CIVILFEM,Y
~CFACTIV,GETC,Y

FINISH
~SEEPAGE,2D

/prep7

~cfmp,1,lib,soil,,sc
~cfmp,1,soil,kx,,10
~cfmp,1,soil,ky,,20
~cfmp,2,lib,soil,,sc
~cfmp,2,soil,kx,,2
~cfmp,2,soil,ky,,6

! Area 1

x_off = 5
y_off = 5

L1 = x_off+5
L2 = L1+3
L3 = L2+2
H1 = y_off+4
H2 = H1+4

k,,x_off,y_off
k,,L1,y_off
k,,L2,H1
k,,L3,H1
k,,L3,H2
k,,x_off,H2

l,1,2
*repeat,5,1,1
l,6,1

al,all

! Area 2

k,,x_off+2.5,y_off+1
k,,x_off+4.5,y_off+4
k,,x_off+3.5,y_off+5
k,,x_off+1.5,y_off+4

l,7,8
l,8,9
l,9,10
l,10,7

al,7,8,9,10

asba,1,2,,,keep

H3 = y_off+12
H4 = y_off+20
L4 = x_off+15
L5 = x_off+20

k,,x_off,H3
k,,L4,H3
k,,L4,H1

k,,x_off,H4
k,,L5,H4
k,,L5,H3

A,6,11,12,5
A,5,4,13,12
A,11,14,15,16,12,11
A,13,16,12,13

lesize,13,,,5,0.5
lesize,4,,,5,0.5

! Area 2 con cuadr
esize,0.8
mat,1
amesh,2
mshape,1
esize,1
mat,1
amesh,3
mat,2
amesh,1
mat,1
amesh,4
amesh,6
esize,2
mat,2
amesh,5
/solu

~DLHEAD,ADD,16,120
~DLHEAD,ADD,20,30
~DLHEAD,ADD, 6,50
~DLHEAD,ADD, 2,80

~LPSOLVE
/post1
file,file,seep
SET,1

PARRES,new,E4_ANSYS

*DIM,H_CF,,NNUM
*DIM,TGX_CF,,NNUM
*DIM,TGY_CF,,NNUM
*DIM,TFX_CF,,NNUM
*DIM,TFY_CF,,NNUM
*VGET,H_CF,NODE,1,HEAD
*VGET,TFX_CF,NODE,1,S,X
*VGET,TFY_CF,NODE,1,S,Y
*VGET,TGX_CF,NODE,1,EPEL,X
*VGET,TGY_CF,NODE,1,EPEL,Y
! Tolerance
TOL = 1e-4
*DIM,VTOL,,NNUM
*VFILL,VTOL,RAMP,TOL

*DIM,H_COMP,,NNUM
*DIM,H_OK,,NNUM
*DIM,TGX_COMP,,NNUM
*DIM,TGX_OK,,NNUM
*DIM,TGY_COMP,,NNUM
*DIM,TGY_OK,,NNUM
*DIM,TFX_COMP,,NNUM
*DIM,TFX_OK,,NNUM
*DIM,TFY_COMP,,NNUM
*DIM,TFY_OK,,NNUM

! a-b

*VOPER, H_COMP(1),H_ANSYS(1),SUB,H_CF(1)
*VOPER, H_OK(1),H_COMP(1),LE,VTOL(1)
*VSCFUN,H_BOOL,SUM,H_OK ! HBOOL debe ser = NNUM

*VOPER, TGX_COMP(1),TGX_ANSYS(1),SUB,TGX_CF(1)
*VOPER, TGX_OK(1),TGX_COMP(1),LE,VTOL(1)
*VSCFUN,TGX_BOOL,SUM,TGX_OK

*VOPER, TGY_COMP(1),TGY_ANSYS(1),SUB,TGY_CF(1)
*VOPER, TGY_OK(1),TGY_COMP(1),LE,VTOL(1)
*VSCFUN,TGY_BOOL,SUM,TGY_OK

*VOPER, TFX_COMP(1),TFX_ANSYS(1),SUB,TFX_CF(1)
*VOPER, TFX_OK(1),TFX_COMP(1),LE,VTOL(1)
*VSCFUN,TFX_BOOL,SUM,TFX_OK

*VOPER, TFY_COMP(1),TFY_ANSYS(1),SUB,TFY_CF(1)
*VOPER, TFY_OK(1),TFY_COMP(1),LE,VTOL(1)
*VSCFUN,TFY_BOOL,SUM,TFY_OK
/IMAGE,SAVE,%NomFile%,BMP	!Save Image to File
!--------------------------------------------------------------------------------------
! DATA CHECK
!--------------------------------------------------------------------------------------
! Data comparison number
  NComp = 5
  NComp_ch = 0

! Marix dim.
  *DIM,LABEL,CHAR,Ncomp,1
  *DIM,LABEL_CH,CHAR,Ncomp_ch,1
  *DIM,VALUE,,Ncomp,3
  *DIM,VALUE_CH,CHAR,Ncomp_ch,3
  *DIM,TOLER,,Ncomp,2

! Labels
  LABEL(1,1) = 'H'
  LABEL(2,1) = 'TGX'
  LABEL(3,1) = 'TGY'
  LABEL(4,1) = 'TFX'
  LABEL(5,1) = 'TFY'

! Correct values
  VALUE(1,1)=NNUM
  VALUE(2,1)=NNUM
  VALUE(3,1)=NNUM
  VALUE(4,1)=NNUM
  VALUE(5,1)=NNUM

! Obtained values
  VALUE(1,2)= H_BOOL
  VALUE(2,2)= TGX_BOOL
  VALUE(3,2)= TGY_BOOL
  VALUE(4,2)= TFX_BOOL
  VALUE(5,2)= TFY_BOOL

! Warning and error tolerances
  *DO,II,1,5
    TOLER(II, 1)= 1E-9
    TOLER(II, 2)= 1E-9
  *ENDDO

!--------------------------------------------------------------------------------------
! Results comparison
!--------------------------------------------------------------------------------------
  COMPARA.MAC

Results

Label	Target	CivilFEM	Ratio	Tolerance
H	321	0	2.000	1e-009
TGX	321	221	1.312	1e-009
TGY	321	109	1.660	1e-009
TFX	321	100	1.688	1e-009
TFY	321	212	1.340	1e-009
